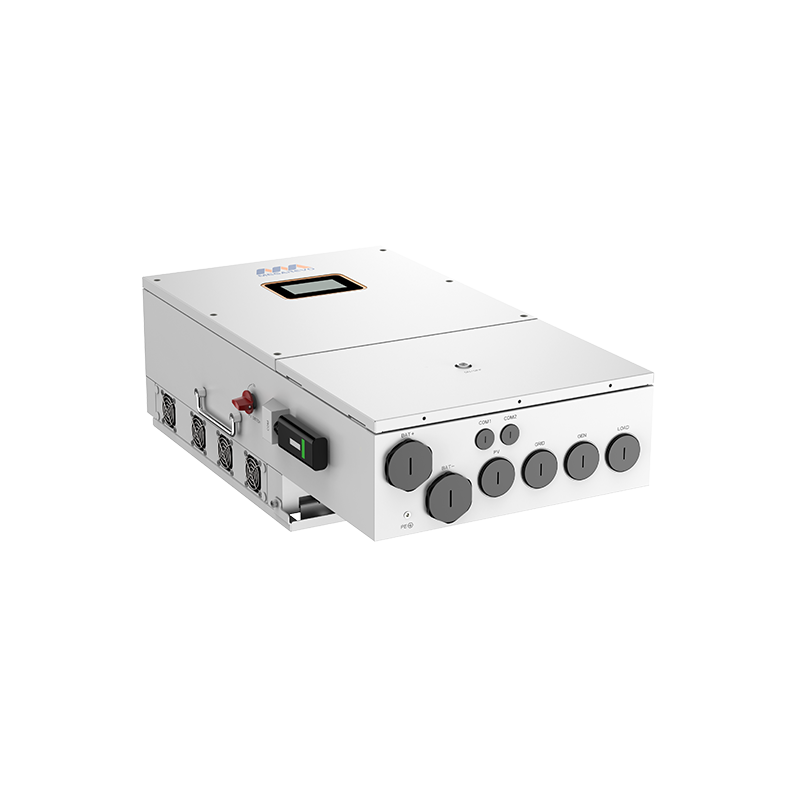

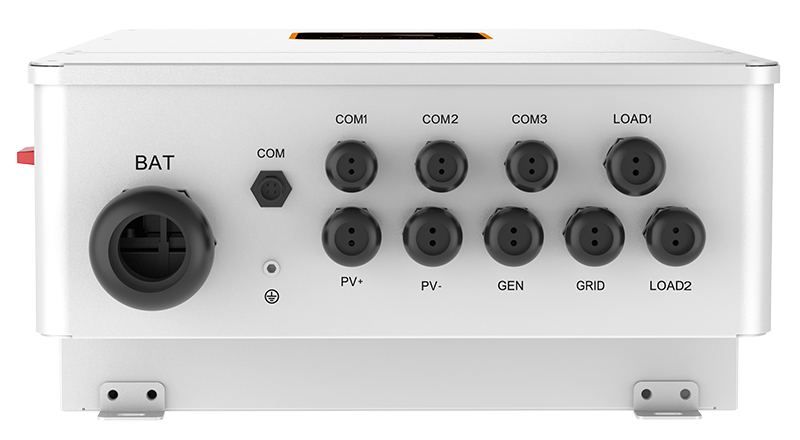

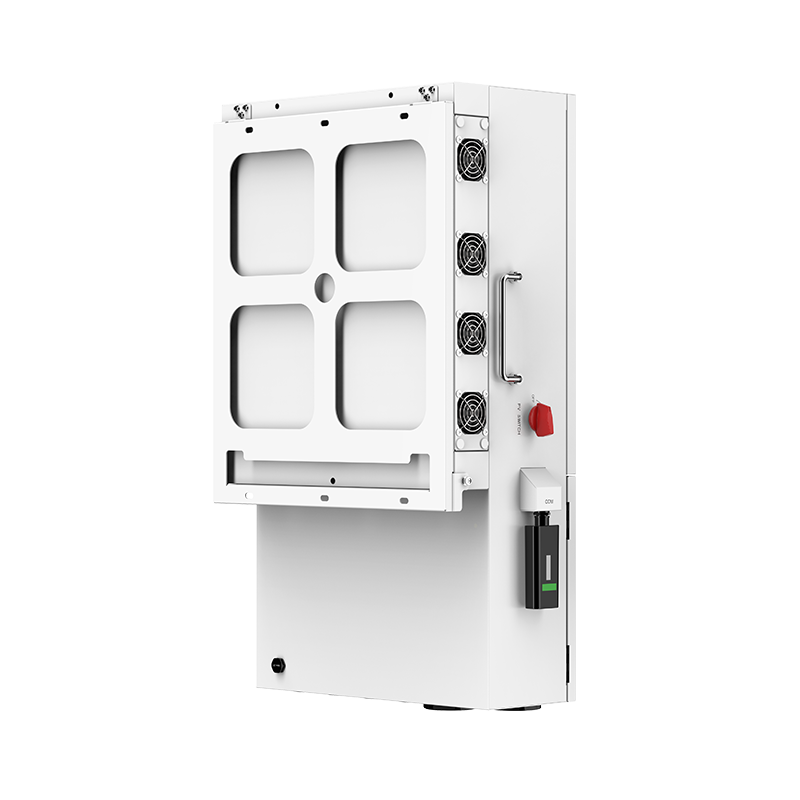

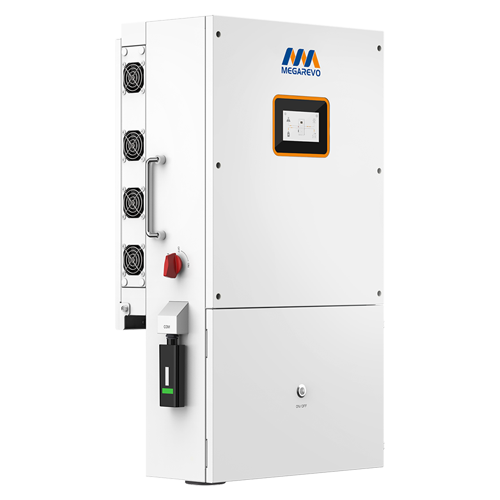

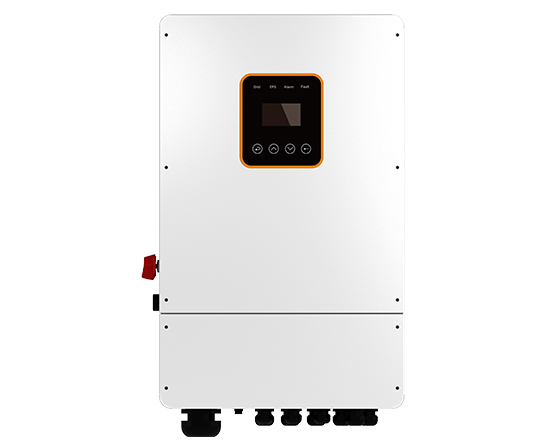

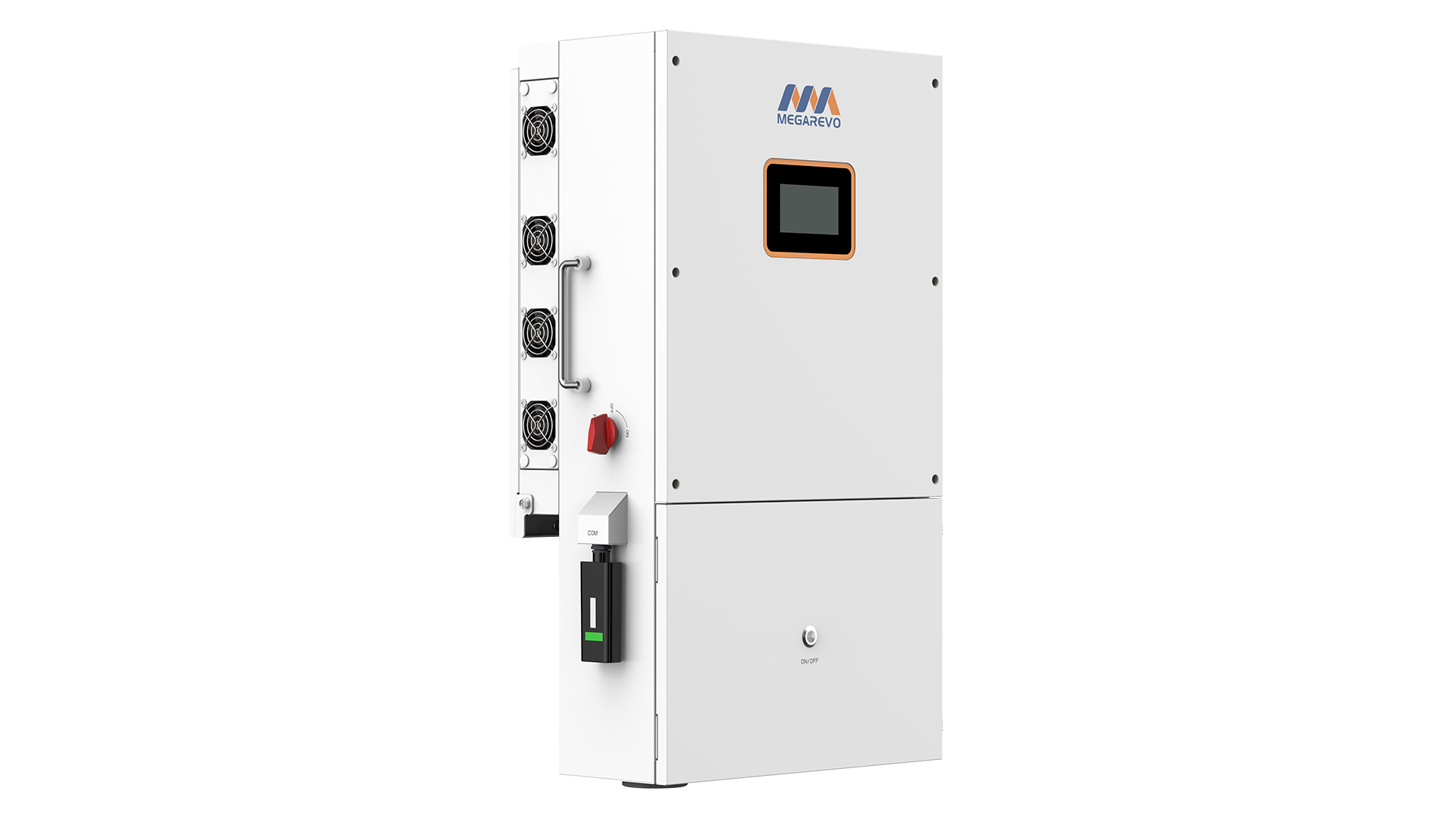

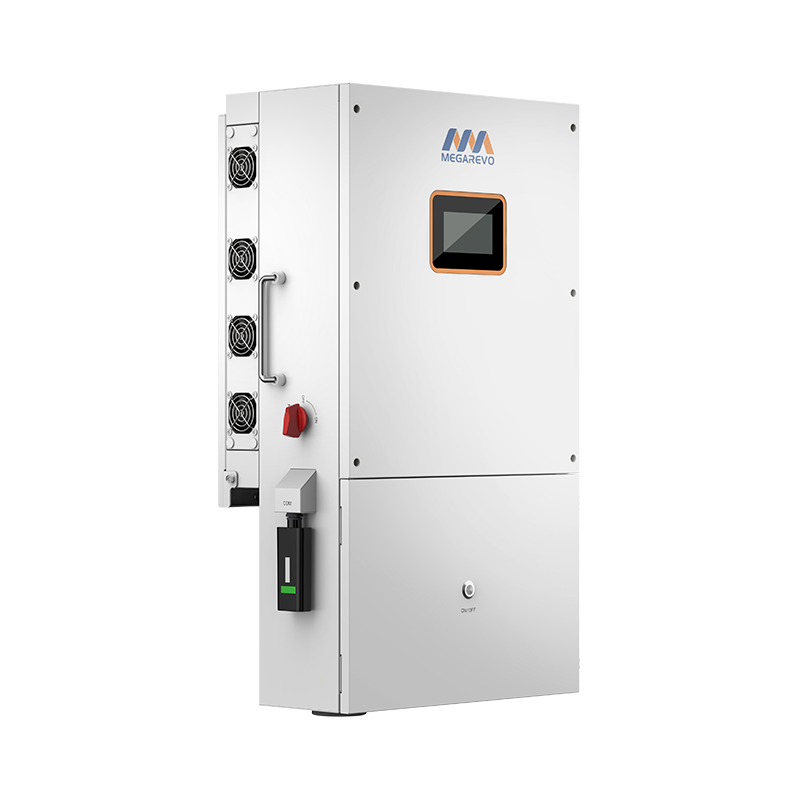

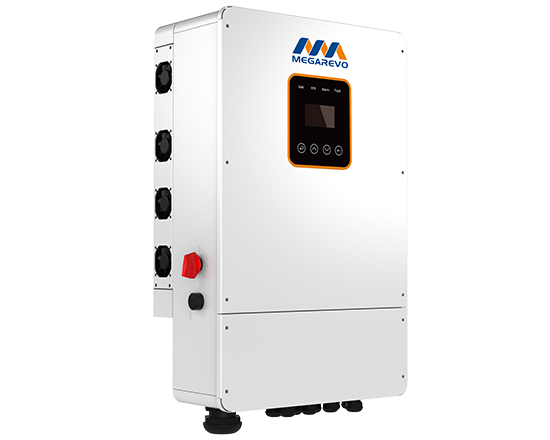

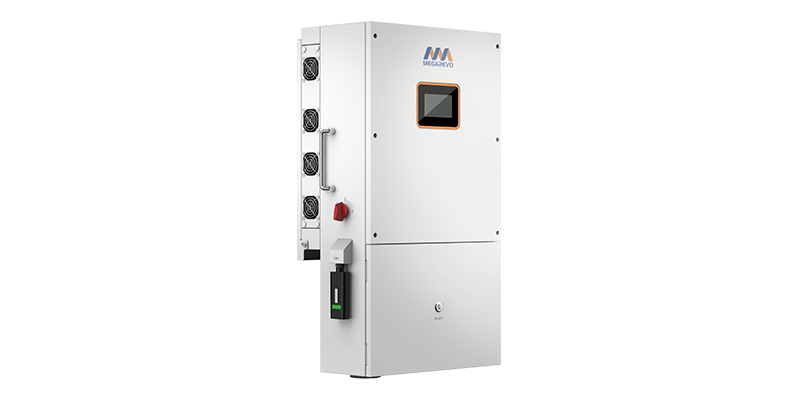

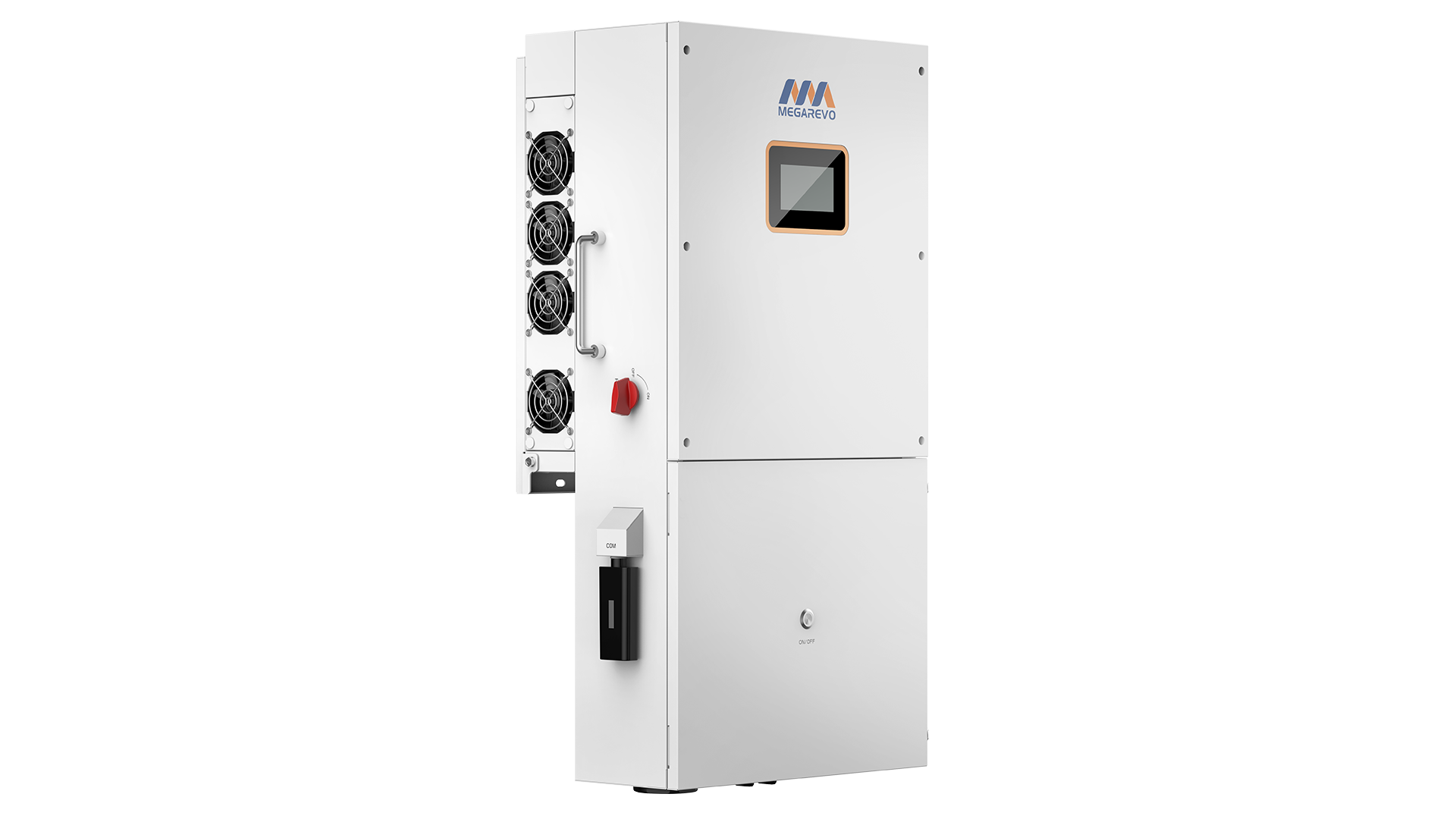

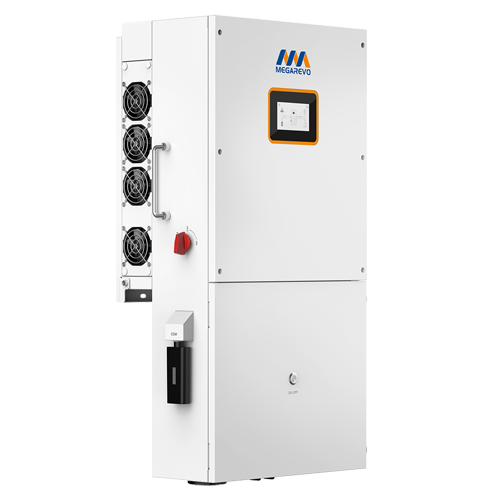

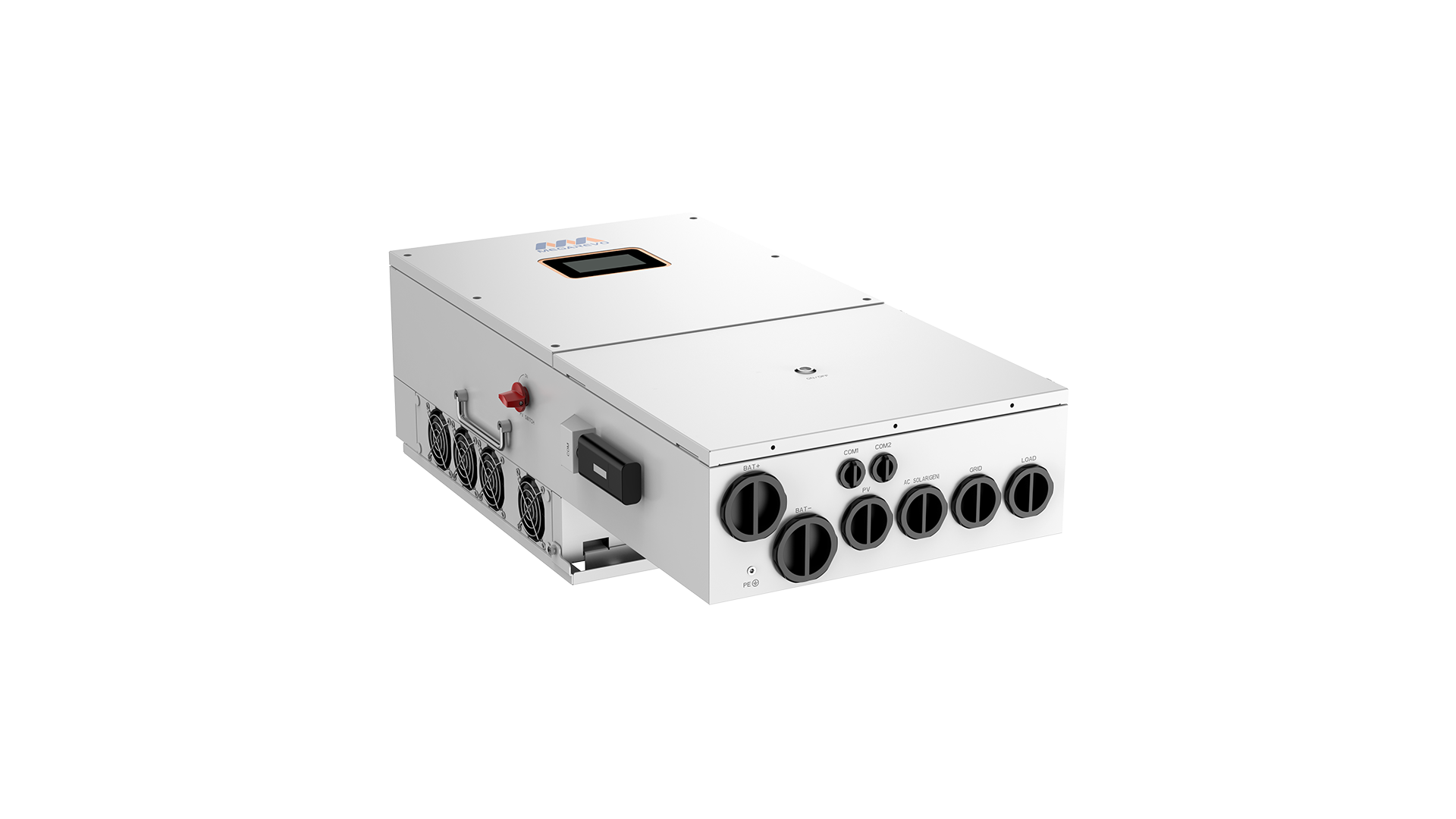

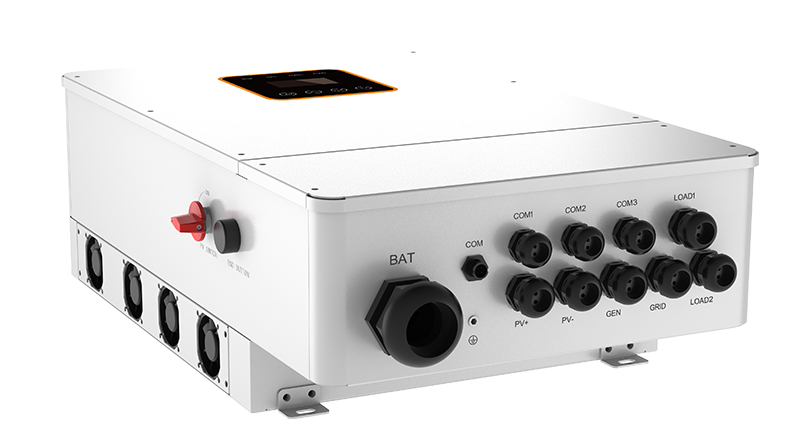

The North American low-voltage hybrid inverter series is specifically designed for home energy storage, featuring a 48V battery system and split-phase output. With support for parallel connection of up to 6 devices, the Megarevo hybrid split phase inverter, coupled with an intelligent display, offer enhanced convenience for operation and maintenance.
【Reduce Electricity Costs by 50% Per Year】The split phase inverter 48V increases solar self-consumption by storing excess daytime energy for night use. With 4 MPPT trackers optimizing power generation under different roof conditions, users can further reduce grid dependence and lower overall electricity bills.
【Free Energy Available at Night】The 48V split phase inverter stores excess solar energy in the battery during the day. At night, the system automatically supplies power from the battery to household loads, ensuring continuous energy use and reducing dependence on the grid.
【Participate in Peak Load Shifting to Gain Additional Economic Benefits】Megarevo’s split phase hybrid inverter participates in peak load shifting to lower energy bills and maximize economic returns by storing excess solar power during the day and using it during evening or peak-demand hours.
【Keeping Critical Load Operation in Power Off】The Megarevo split phase hybrid inverter ensures continuous operation of critical household loads during power outages, providing reliable backup power for essential appliances and systems.
【Support 7*24 Remote Service】The split phase hybrid inverter 48v supports 7×24 remote service, allowing real-time monitoring, diagnostics, and management to ensure reliable operation and reduce maintenance costs.
| Model | R5KLNA | R6KLNA | R7K6LNA | R8KLNA | R10KLNA |
| PV input data | |||||
| Max. DC input power (kW) | 7.5 | 9 | 12 | 12 | 15 |
| No. of MPPT trackers | 4 | ||||
| MPPT voltage range (V) | 120~500 | ||||
| Max. DC input voltage (V) | 500 | ||||
| Full power operating voltage range (V) | 120~430 | ||||
| Max. input current (A) | 14 | ||||
| Max. short-circuit current (A) | 22 | ||||
| Battery input data | |||||
| Rated battery voltage (Vdc) | 48 | ||||
| Max. charging / discharging current (A) | 120/120 | 135/135 | 190/190 | 190/190 | 190/210 |
| Battery voltage range (V) | 40~60 | ||||
| Battery recommended voltage range (V) | 40~58 | ||||
| Battery type | Lithium-ion / Lead-acid | ||||
| Battery charging strategy | Self-adaption to BMS | ||||
| AC output data (on-grid) | |||||
| Rated output power to grid (kVA) | 5 | 6 | 7.6 | 8 | 10 |
| Max. apparent power output to grid (kVA) | 5.5 | 6.6 | 8.4 | 8.8 | 11 |
| Output voltage range ( (V) | 110-120/220-240V split phase, 1Ø, 230 1 phase | ||||
| Output frequency (Hz) | 50/60 (45 ~ 54.9 / 55 ~ 65) | ||||
| Rated AC current output to grid (A) | 20.8 | 25 | 31.7 | 33.3 | 41.7 |
| Max. AC current output to grid (A) | 22.9 | 27.5 | 35 | 36.7 | 45.8 |
| Power factor | 0.8leading~0.8lagging | ||||
| Output THDi | <2% | ||||
| Max. grid passthrough current(A) | 100 | ||||
| AC output data (back-up) | |||||
| Rated apparent power output (kVA) | 5 | 6 | 7.6 | 8 | 10 |
| Max. apparent power output (kVA) | 5.5 | 6.6 | 8.4 | 8.8 | 11 |
| Rated output voltage (L-N/L1-L2) (V) | 120/240 | ||||
| Rated output frequency (Hz) | 60 | ||||
| Output THDu | <2% | ||||
| Protection | |||||
| Supported protection | Grounding detection, Arc fault protection, Island protection, Insulation resistor detection, Residual current monitoring unit, Output over current protection, Back-up output short protection, Output over voltage protection, Output under voltage protection | ||||
| Certifications and standards | |||||
| Safety | UL1741SA all options, UL1699B, CSA 22.2 | ||||
| EMC | FCC part 15 class | ||||
| Grid connection standards | IEEE 1547, IEEE 2030.5, Hawaii rule 14H, Rule 21 phase I, II, III | ||||
| General data | |||||
| Europe efficiency | ≥97.8% | ||||
| Max. battery to load efficiency | ≥ 97.2% | ||||
| Ingress protection | IP65 / Type 3R | ||||
| Operating temperature range (℃) | -25 ~ +60 (>45 derating) | ||||
| Cooling | Natural convection | ||||
| Relative humidity | 0-95% | ||||
| Operating altitude (m) | 0~4,000 | ||||
| Dimensions W*D*H (mm) | 450 x 240 x 820 | ||||
| Weight (kg) | 48 | ||||
| Noise emission (dB) | <48 | ||||
| Self-consumption (W) | <25 | ||||
| Display and communication | |||||
| Display | LCD touch screen | ||||
| Communication with BMS/meter/EMS | RS485, CAN | ||||
| Supported communication interface | RS485, WLAN, 4G (optional) | ||||

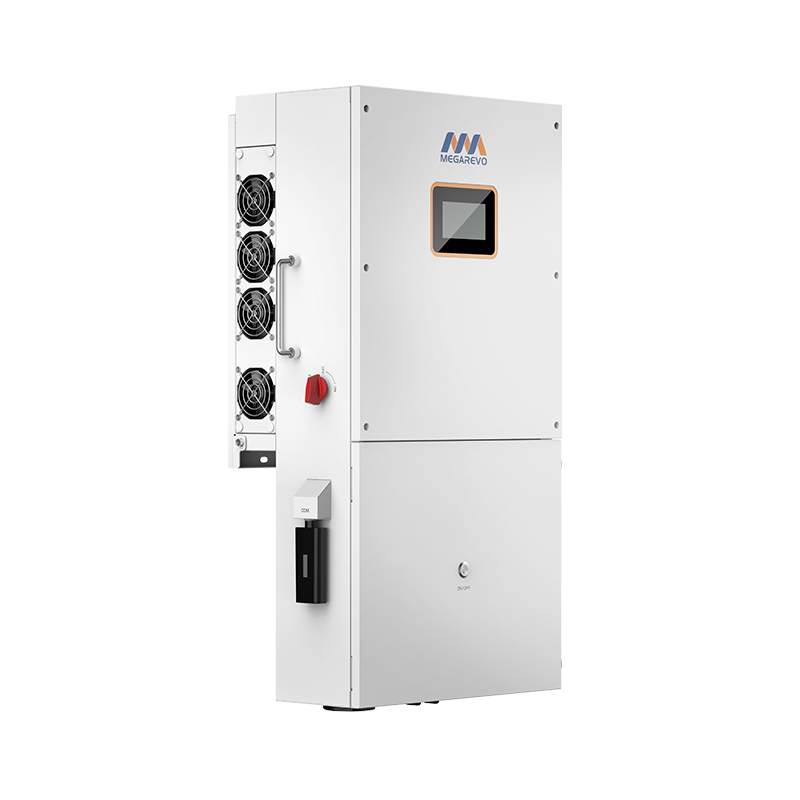

| Model | R12KLNA | R16KLNA |
| PV input data | ||
| Max. DC input power (kW) | 18 | 24 |
| No. of MPPT trackers | 4 | |
| MPPT voltage range (without battery)(V) | 120~500 | |
| MPPT voltage range (with battery) (V) | 120~430 | |
| Max. DC input voltage (V) | 500 | |
| Max. input current per MPPT (A) | 16/16/16/16 | 20/20/20/20 |
| Max. short-circuit current per MPPT (A) | 22/22/22/22 | 25/25/25/25 |
| Battery input data | ||
| Rated battery voltage (V) | 48 | |
| Max. charging / discharging current (A) | 250/260 | 260/280 |
| Battery voltage range (V) | 40~58 | |
| Battery type | Lithium-ion / Lead-acid | |
| Charging controller | 3-Stage with equalization | |
| AC output data (on-grid) | ||
| Rated output power output to grid (kW) | 12 | 16 |
| Max. apparent power output to grid (kVA) | 13.2 | 17.6 |
| Rated AC voltage (L-N/L1-L2) (V) | (110~120)/(220~240V) split phase, 240V single phase | |
| Rated AC frequency (Hz) | 60 (55 ~ 65) | |
| Rated AC current (A) | 50 | 66.7 |
| Max. AC current (A) | 55 | 73.3 |
| Max. grid passthrough current(A) | 200 | |
| Output THDi | <3% | |
| AC output data (back up) | ||
| Rated apparent power (kW) | 12 | 13 |
| Max. apparent power (kVA) | 12(No PV) / 13.2(With PV) | 13.2 |
| Rated output voltage (V) | 120/240 | |
| Rated output frequency (Hz) | 60 | |
| Power factor | 0.8leading~0.8lagging | |
| Output THDu | <2% | |
| Protection | ||
| Supported protection | Grounding detection, Arc fault protection, Island protection, Insulation resistor detection, Residual current monitoring unit, Output over current protection, Back-up output short protection, Output over voltage protection, Output under voltage protection | |
| Certifications and standards | ||
| Safety | UL1741, UL1741SA&SB all options, UL1699B, CSA -C22.2 NO.107.1-01, RSD (NEC690.5, 11, 12) | |
| EMC | FCC Part 15 Class B | |
| Grid connection standards | IEEE 1547, IEEE 2030.5, HECO Rule 14H, CA Rule 21 Phase I, II, III, CEC, CSIP, SRD2.0, SGIP, OGPe, NOM, California Prob65 | |
| General data | ||
| MPPT efficiency | 99.9% | |
| Europe efficiency (PV) | 96.2% | |
| Max. PV to grid efficiency (PV) | 96.5% | |
| Max. battery to load efficiency | 94.6% | |
| Max. PV to battery charing efficiency | 95.8% | |
| Max. grid to battery charing efficiency | 94.5% | |
| Ingress protection | IP65 / NEMA 3R | |
| Operating temperature range (℃) | -25~+60 | |
| Cooling | Fan cooling | |
| Relative humidity | 0-95% | |
| Operating altitude (m) | 0~4,000(Derating above 2,000 altitude) | |
| Dimensions W*D*H (mm) | 495 x 260 x 900 | |
| Weight (with breaker) (kg) | 56 | |
| Noise emission (approximately)(dB) | 57 | |
| Self-consumption (W) | <25 | |
| Display and communication | ||
| Display | Touch panel | |
| Communication with BMS/meter/EMS | RS485, CAN | |
| Supported communication interface | RS485, 4G(optional), Wi-Fi | |
