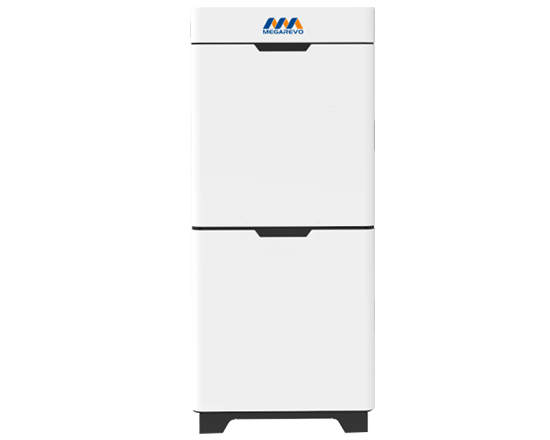

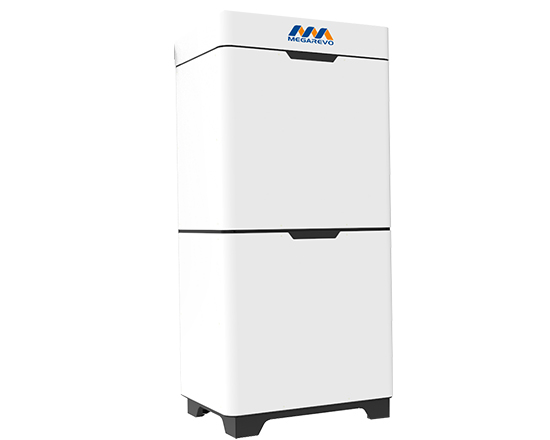

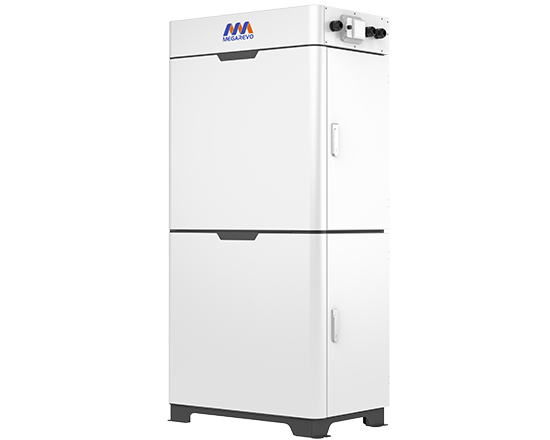

Residential energy storage battery cabinet

Designed for home energy use

Megarevo’s residential energy storage battery cabinet with high energy density LFP batteries. The capacity of the system can be flexibly configured between

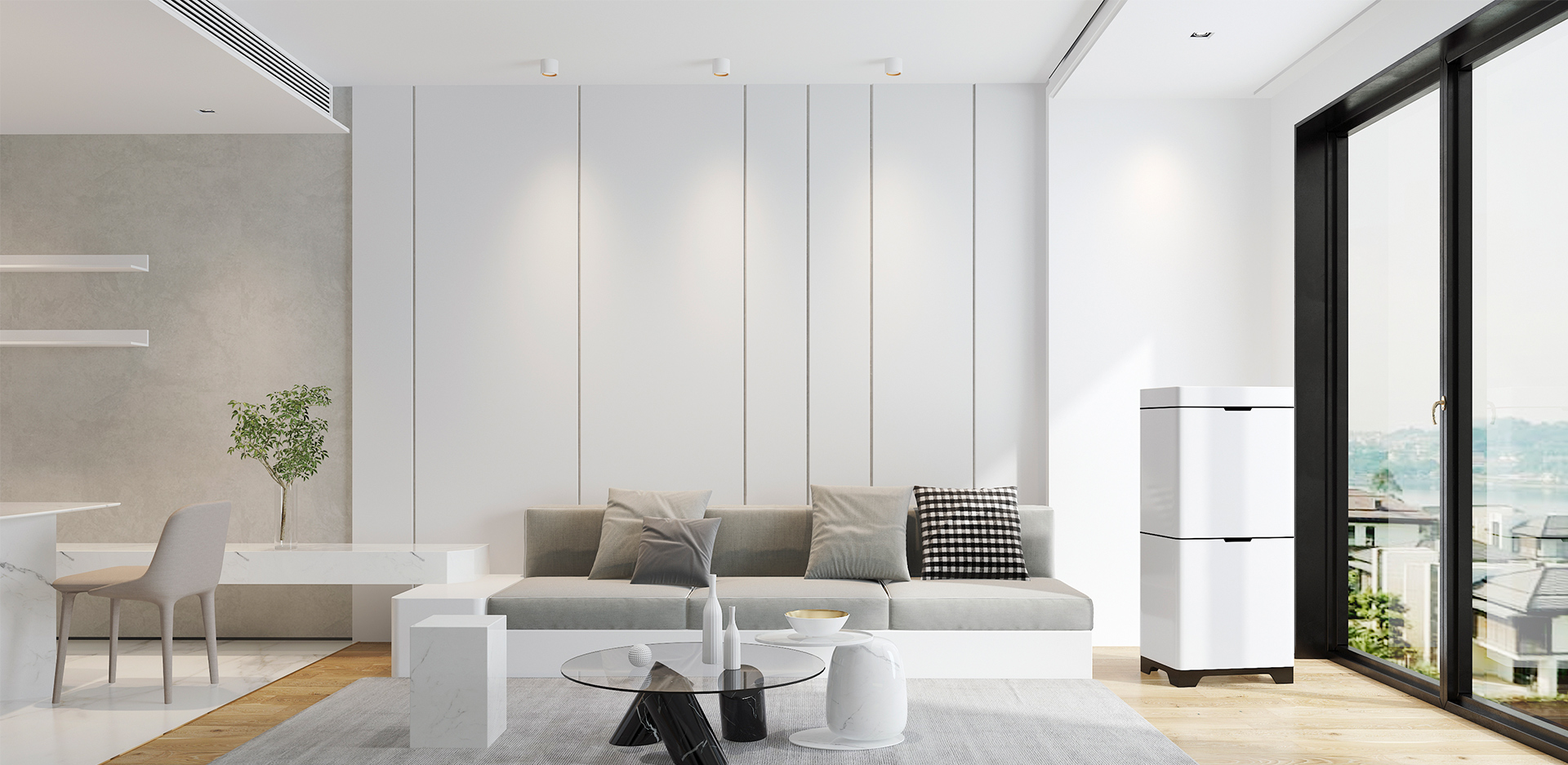

2.4kWh ~9.2kWh. With the BMS management system, it has a cycle life of more than 10 years and is suitable for installation in villas, office areas and other scenarios.

Product Highlights

Simple and flexible

Modular design, easy installation and operation;

Support battery expansion；

Economical &friendly

System cycle life ≥ 10 years;

Support peak load shifting and important load backup;

Intelligent and efficient

Integrated BMS management system to support intelligent management;

Compatible with CANbus/RS485 communication interface

Choose our benefits

Integrated design for easy installation

Highly cost-eﬀective

Support mainstream hybrid inverters

Capacity can be ﬂexibly conﬁgured

Support 7*24 remote service

Technical specification	E072B048	E144B048
DC(battery)
Total energy(kWh)	2.4/4.8/7.2	9.6/12/14.4
Nominal voltage(V)	48V
Discharge voltage(V)	45~54
Charging voltage(V)	52.5~54
Max. charging current(A)	25/50/75	100/120
Max. discharge current(A）	25/50/75	100/120
Ingress protection	IP21
General data
Dimension WDH (mm)	530350680	5303501200
Weight（kg）	83	163
