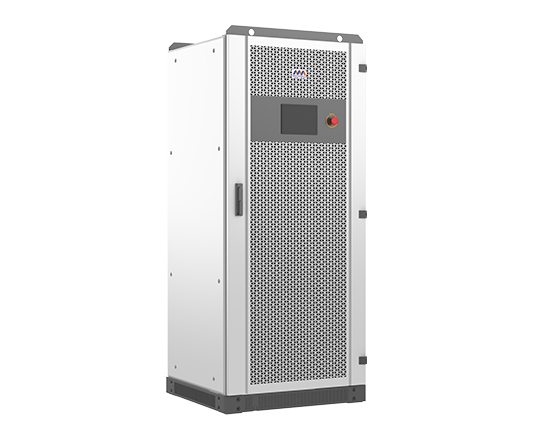

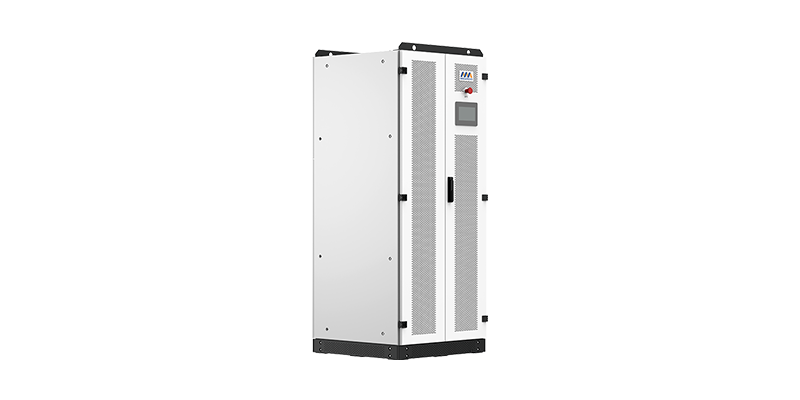

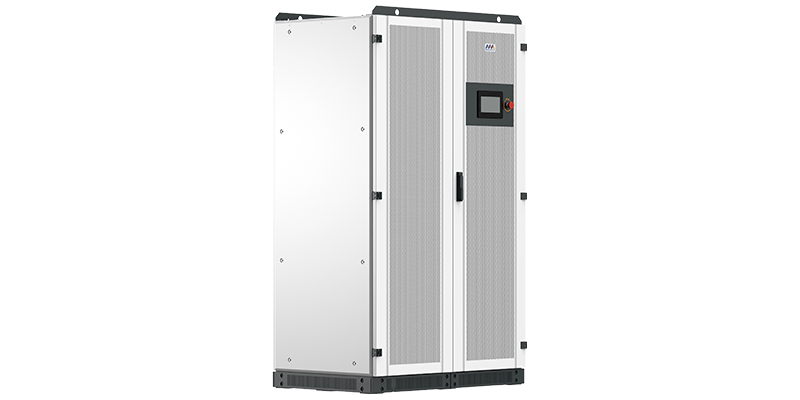

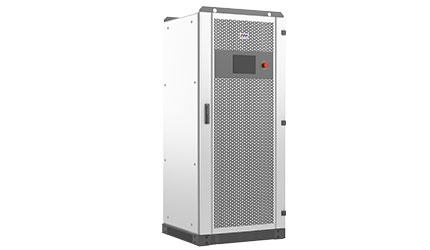

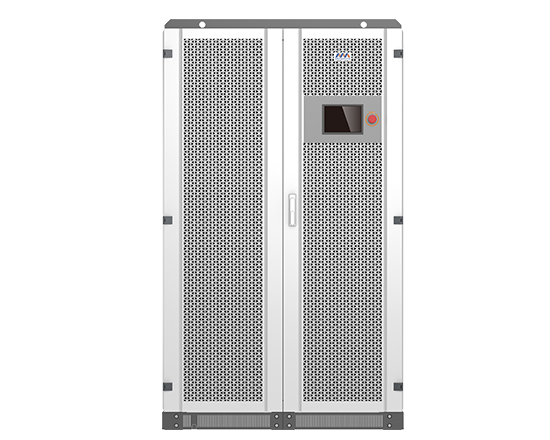

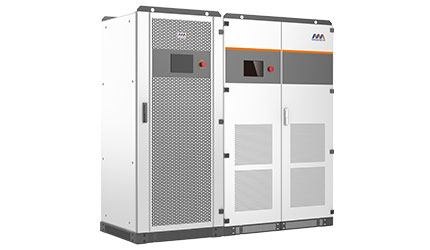

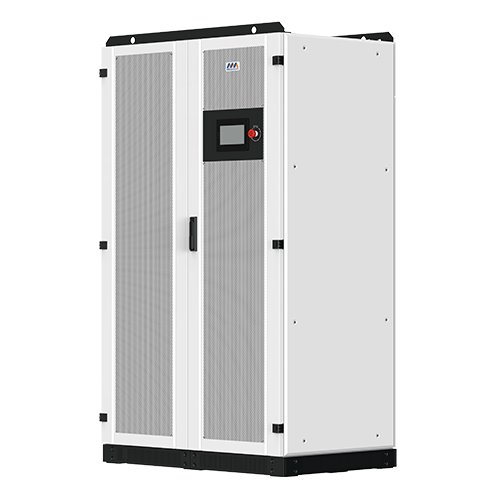

>MPS Hybrid inverter

Please fill in the email and download the information immediately

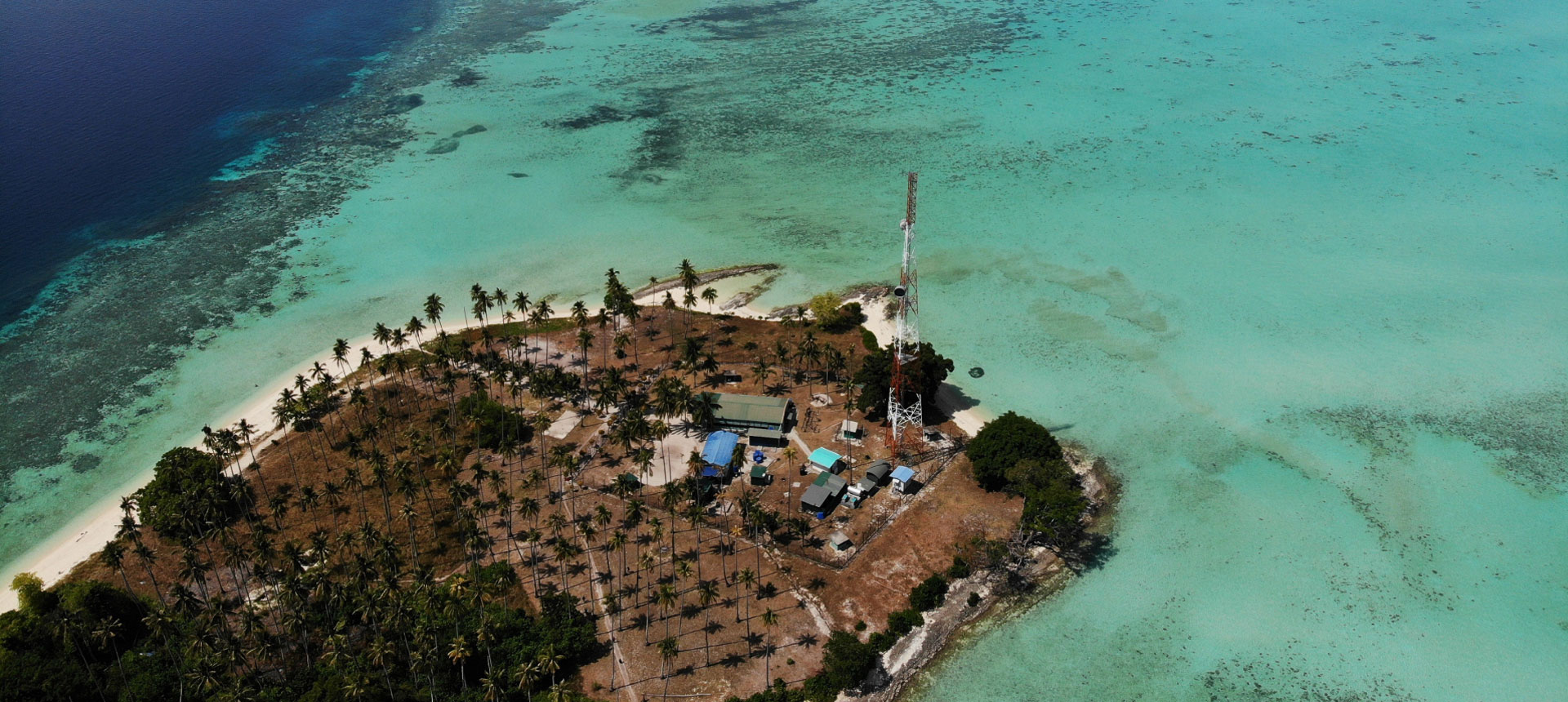

Megarevo MPS series hybrid inverters adopt an integrated design, integrating PV controllers, energy storage converters, and on/off-grid automatic switching units, greatly improving customer deployment efficiency and reducing installation costs. The PV capacity can be flexibly configured, greatly improving the microgrid system availability, and is suitable for remote areas and islands where power is relatively weak. Our microgrid inverter's strong load adaptability and complete protection function ensure power supply security and stability.

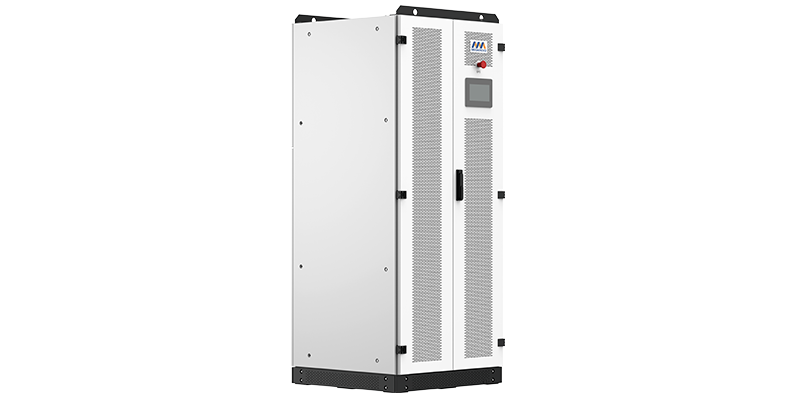

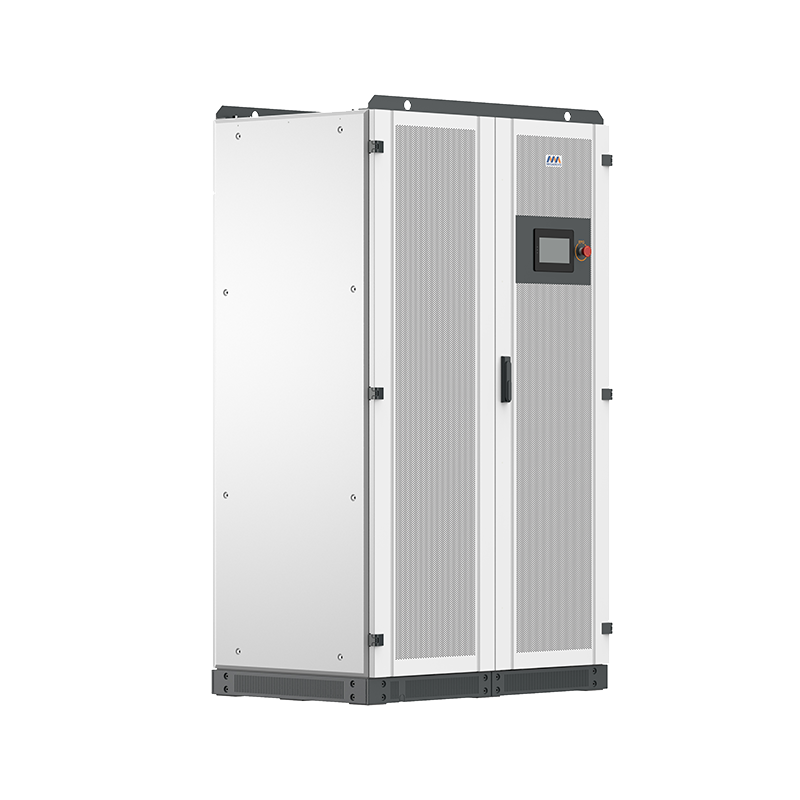

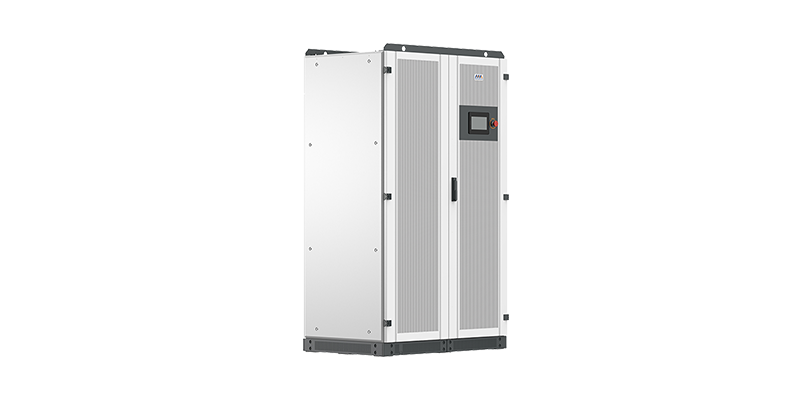

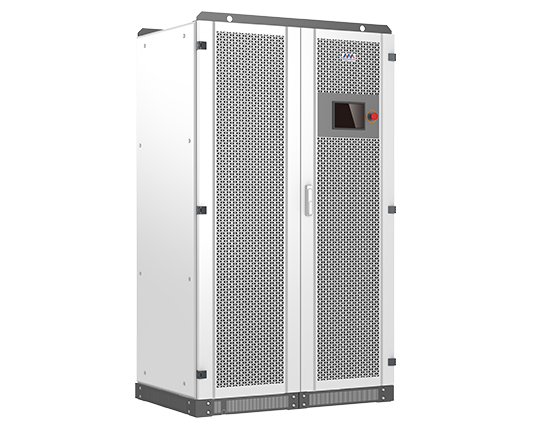

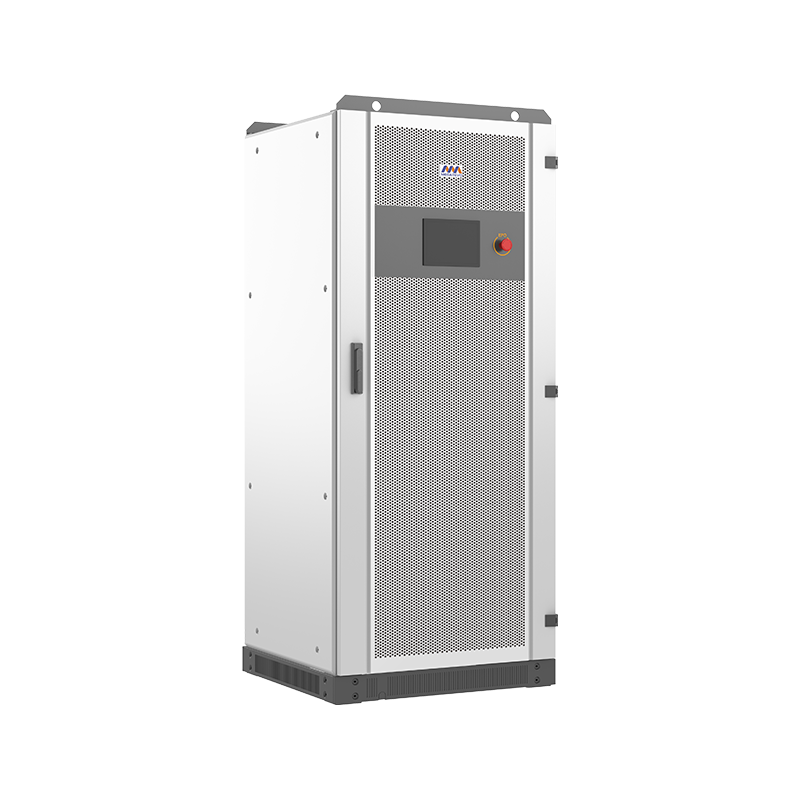

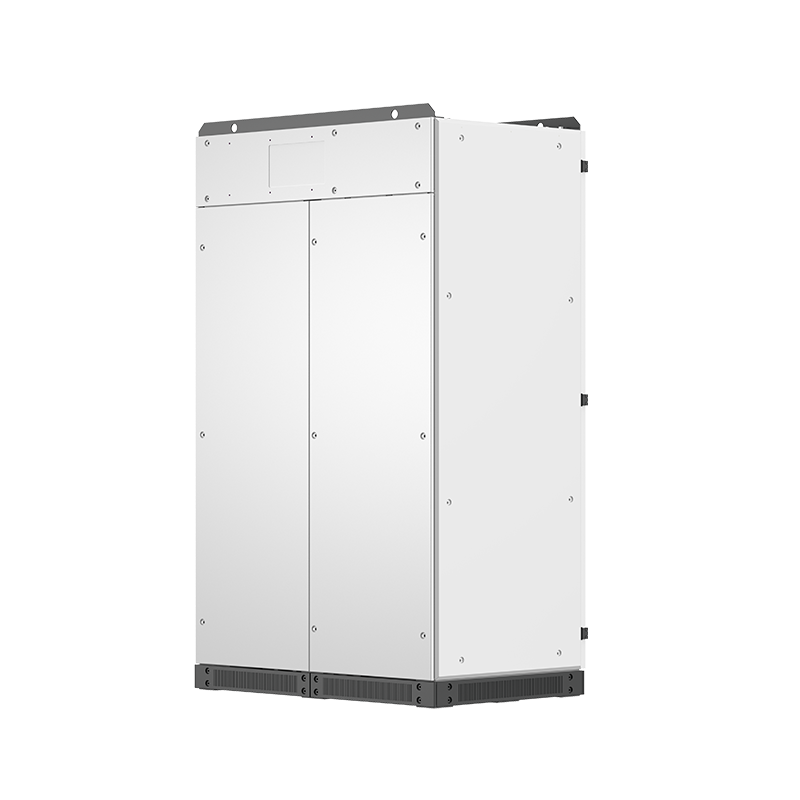

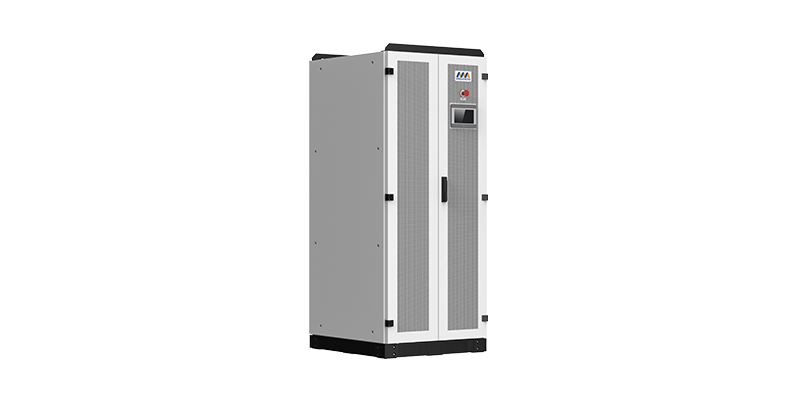

MPS hybrid inverter

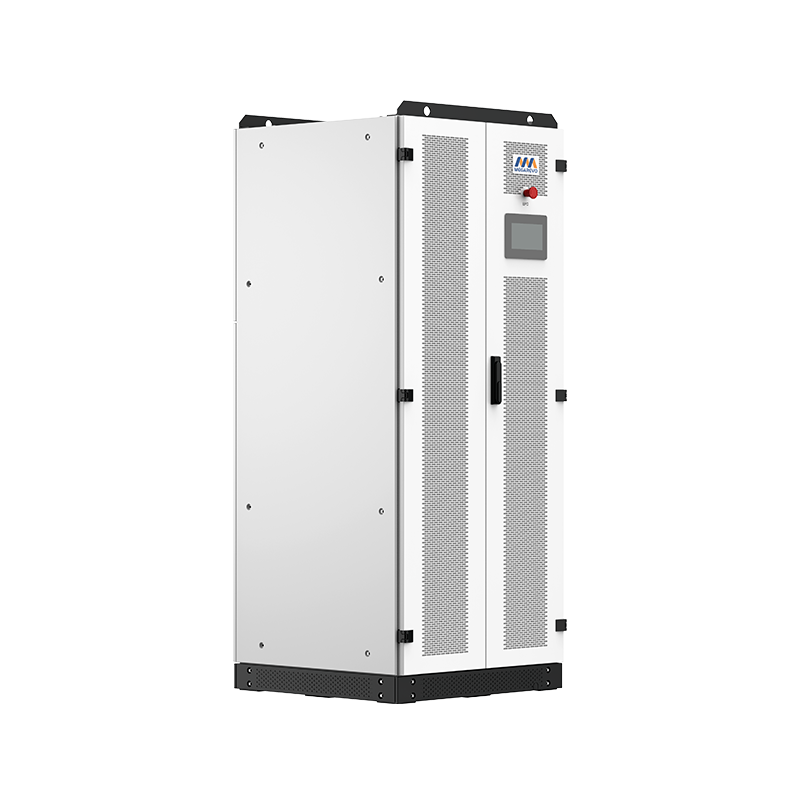

MPS hybrid inverter

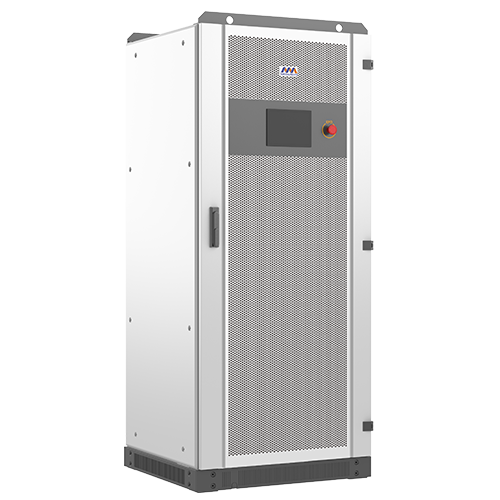

MPS hybrid inverter

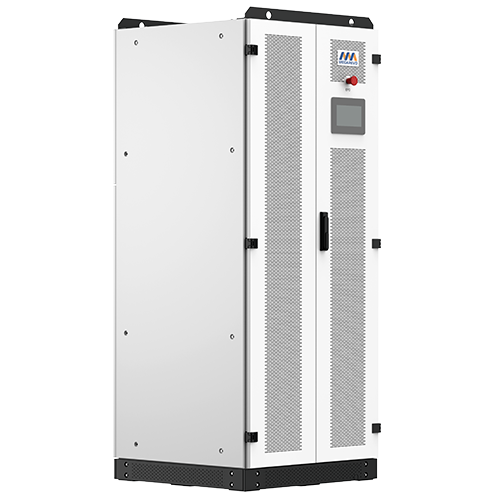

MPS hybrid inverter

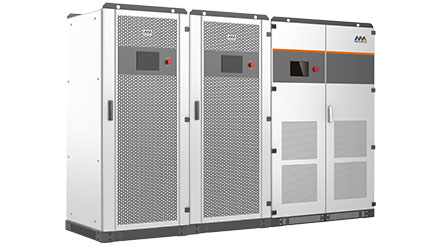

MPS hybrid inverter

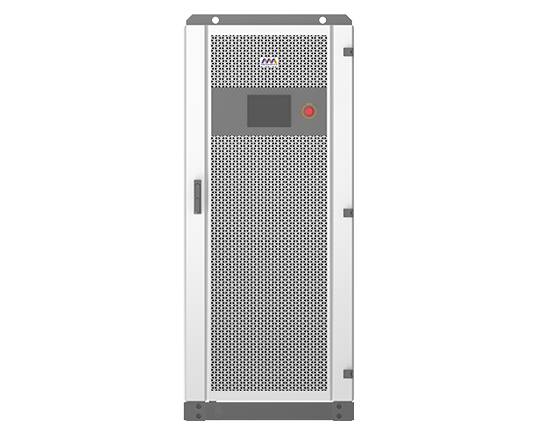

MPS hybrid inverter

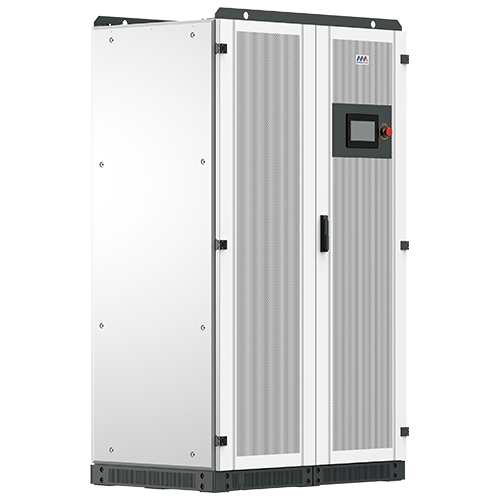

MPS hybrid inverter

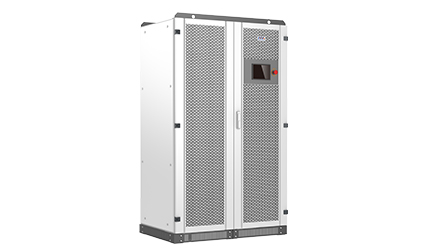

MPS hybrid inverter
Product Highlights
Safe and reliable
Passed EN62109-1/-2, EN62477-1, EN61000-6-2, EN61000-6-4, South Africa NRS097-2-1:2017, Pakistan & India IEC61727, IEC62116, IEC 61683 test certification;
Flexible configuration
Support PV, diesel generator, battery, load at the same time access, also has strong adaptability, support black start; Various working modes can be set flexibly;
Convenient operation and maintenance
Supports unattended operation , with an HMI digital display panel, which quickly judge the operating status and health of the equipment. Combined with cloud-based EMS, it can realize remote monitoring and management.
Choose our benefits

Save more installation, commissioning costs

Reduce the use of fossil fuels and be more environmentally friendly

Increase the penetration of renewable energy

Continuous and stable power supply

PV expansion will be more convenient in the future

MPS microgrid 400v MPS microgrid 400v (G3) MPS microgrid 208v high (Americas) MPS microgrid 208v wye (Americas version) MPS microgrid 480v (Americas)
MPS microgrid 400v
ModelMPS0030MPS0050MPS0100MPS0150MPS0250MPS0500
AC(on-grid)
Max output power (kVA)33
55110
165275550
Rate output power (kW)3050100150250500
Rated voltage(V)400
Voltage range (V)320~460
Rated current (A)43
72144216361722
Rated frequency (Hz)50/60
Frequency range (Hz)45~55/55~65
THDi<3%
Power factor1lagging-1leading（Settable）
AC connection3W+N+PE
Transformer ratio100/400200/400270/400270/400270/400315/400
AC(off-grid)
Max output power (kVA)3355110165275550
Rated power (kW)3050100150250500
Rated voltage (V)400
Rated current (A)4372144216361722
THDu≤1% linear;  or≤5% nonlinear
Rated frequency (Hz)50/60
Overload capacity110% long-term, 120% 1min
PV input
Max.PV input voltage (V)1,000
Max.PV power (kW)36/7260/120120/180/240120/180/240300/360600/660/720
MPPT module quantity1/21/22/3/42/3/45/610/11/12
MPPT voltage range (V)250-850
MPPT voltage range@full load (V)450-850
Battery
Battery voltage range (V) 250~850320~850420~850420~850420~850500~850
Max. charging power (kW)36/7260/120120/180/240120/180/240300/360600/660/720
General data
Dimension W*D*H (mm)800*800*1,900800*800*1,9001,200*800*2,0501,200*800*2,050

(600*720*2,050)*1

+1,200*800*2,050

(600*720*2,050)*2

+1,600*1050*2,050

Net weight (kg)576/607720/7501,120/1,150/1,1801,250/1,280/1,3101,980/2,0103,265/3,295/3,325
Operation temperature (℃) -30 ~ 55
Relative humidity0 ~95% non-condensing
Ingress protectionIP20
Noise emission (dB)<70
Operating altitude<5000m(>3,000 Derating)
CoolingAir Cooling
Display and communication
DisplayLCD touch-screen
BMS communicationRS485, CAN
EMS communication RS485, TCP/IP
Certificates

EN62109-1/-2, EN62477-1, EN61000-6-2, EN61000-6-4, South Africa NRS097-2-1:2017,

Pakistan & India IEC61727, IEC62116, IEC 61683



MPS microgrid 400v (G3)
ModelMPS0100-G3MPS0150-G3
AC(on-grid)
Max output power (kVA)110165
Rate output power (kW)100150
Rated voltage(V)400
Voltage range (V)320~460
Rated current (A)144216
Rated frequency (Hz)50/60
Frequency range(Hz)45~55/55~65
THDi<3%
Power factor1lagging-1leading（Settable）
AC connection3W+N+PE
Transformer ratio270/400270/400
AC(Off Grid)
Max output power (kVA)110165
Rated power (kW)100150
Rated voltage (V)400
Rated current (A)144216
THDu≤1% linear;  or≤5% nonlinear
Rated frequency(Hz)50/60
Overload capacity110% long-term, 120% 1min
PV input
Max.PV input voltage (V)1000
Max.PV power (kW)120/180/240120/180/240
MPPT module quantity2/3/42/3/4
MPPT voltage range (V)250-850
MPPT voltage range@full load (V)450-850
Battery
Battery voltage range (V) 420~850420~850
Max. charging power (kW)120/180/240120/180/240
General data
Dimension W*D*H (mm)800*800*1,950800*800*1,950
Net weight (kg)970/1,000/1,0301,100/1,130/1,160
Operation temperature (℃) -30 ~ 55
Relative humidity0 ~95% non-condensing
Ingress protectionIP20
Noise emission (dB)<70
Operating altitude (m)<5000m(>3,000 Derating)
CoolingAir Cooling
Display and communication
DisplayLCD touch-screen
BMS communicationRS485, CAN
EMS communication RS485, TCP/IP
Certificates

EN62109-1/-2, EN62477-1, EN61000-6-2, EN61000-6-4, South Africa NRS097-2-1:2017,

Pakistan & India IEC61727, IEC62116, IEC 61683

MPS microgrid 208v high (Americas)
ModelMPS0030MPS0050MPS0100MPS0150MPS0250
AC(on-grid)
Max output power (kVA)3355110165275
Rate output power (kW)3050100150250
Rated voltage(V)208V High-legDelta with split phase
Voltage range (V)166~239
Rated current (A)72120240361601
Rated frequency (Hz)50/60
Frequency range (Hz)45~55/55~65
THDi<3%
Power factor1lagging-1leading（Settable）
AC connection3W/N/PE/Delta
Transformer ratio100/240200/240270/240270/240270/240
AC(off-grid)
Max output power (kVA)3355110165275
Rated power (kW)3050100150250
Rated voltage (V)208V High-legDelta with split phase
Rated current (A)72120240360601
THDu≤1% linear;  or≤5% nonlinear
Rated frequency (Hz)50/60
Overload capacity110% long-term
PV input
Max.PV input voltage (V)1,000
Max.PV power (kW)36/7260/120120/180/240120/180/240300/360
MPPT voltage range (V)250-850
MPPT voltage range@full load (V)450-850
Battery
Battery voltage range (V) 250~850320~850420~850420~850420~850
Max. charging power (kW)36/7260/120120/180/240120/180/240300/360
General data
Dimension W*D*H (mm)800*800*1,900800*800*1,9001,200*800*2,0501,200*800*2,050(600*720*2,050)*1+1,200*800*2,050
Net weight (kg)576/607720/7501,120/1,150/1,1801,250/1,280/1,3101,980/2,010
Operation temperature (℃) -30 ~ 55
Relative humidity0 ~95% non-condensing
Ingress protectionIP20
Noise emission (dB)<70
Operating altitude<5000m(>3,000 Derating)
CoolingAir Cooling
Display and communication
DisplayLCD touch-screen
BMS communicationRS485,TCP/IP, CAN
EMS communication RS485,TCP/IP, CAN


MPS microgrid 208v wye (Americas version)
ModelMPS0030MPS0050  MPS0100MPS0150MPS0250
AC(on-grid)
Max output power (kVA)3355110165275
Rate output power (kW)3050100150250
Rated voltage(V)208
Voltage range (V)166~239
Rated current (A)83139278416694
Rated frequency (Hz)50/60
Frequency range (Hz)45~55/55~65
THDi<3%
Power factor1lagging-1leading（Settable）
AC connection3W/N/PE
Transformer ratio100/208200/208270/208270/208270/208
AC(off-grid)
Max output power (kVA)3355110165275
Rated power (kW)3050100150250
Rated voltage (V)208
Rated current (A)83139278416694
THDu≤1% linear;  or≤5% nonlinear
Rated frequency (Hz)50/60
Overload capacity110% long-term
PV input
Max.PV input voltage (V)1,000
Max.PV power (kW)36/7260/120120/180/240120/180/240300/360
MPPT voltage range (V)250-850
MPPT voltage range@full load (V)450-850
Battery
Battery voltage range (V) 250~850320~850420~850420~850420~850
Max. charging power (kW)36/7260/120120/180/240120/180/240300/360
General data
Dimension W*D*H (mm)800*800*1,900800*800*1,9001,200*800*2,0501,200*800*2,050(600*720*2,050)*1+1,200*800*2,050
Net weight (kg)576/607720/7501,120/1,150/1,1801,250/1,280/1,3101,980/2,010
Operation temperature (℃) -30 ~ 55
Relative humidity0 ~95% non-condensing
Ingress protectionIP20
Noise emission (dB)<70
Operating altitude<5000m(>3,000 Derating)
CoolingAir Cooling
Display and communication
DisplayLCD touch-screen
BMS communicationRS485,TCP/IP, CAN
EMS communication RS485,TCP/IP, CAN
MPS microgrid 480v (Americas)
ModelMPS0030MPS0050MPS0100MPS0150MPS0250MPS0500
AC(on-grid)
Max output power (kVA)3355110165275550
Rate output power (kW)3050100150250500
Rated voltage(V)480
Voltage range (V)384~522
Rated current (A)37
61121181301601
Rated frequency (Hz)50/60
Frequency range (Hz)45~55/55~65
THDi<3%
Power factor1lagging-1leading（Settable）
AC connection3W/N/PE
Transformer ratio100/480200/480270/480270/480270/480315/480
AC(off-grid)
Max output power (kVA)3355
110
165275550
Rated power (kW)3050100150250500
Rated voltage (V)480
Rated current (A)37
61
121181301601
THDu≤1% linear;  or≤5% nonlinear
Rated frequency (Hz)50/60
Overload capacity110% long-term
PV input
Max.PV input voltage (V)1,000
Max.PV power (kW)36/7260/120120/180/240120/180/240300/360600/660/720
MPPT voltage range (V)250-850
MPPT voltage range@full load (V)450-850
Battery
Battery voltage range (V) 250~850320~850420~850420~850420~850500~850
Max. charging power (kW)36/7260/120120/180/240120/180/240300/360600/660/720
General data
Dimension W*D*H (mm)800*800*1,900800*800*1,9001,200*800*2,0501,200*800*2,050

(600*720*2,050)*1

+1,200*800*2,050

(600*720*2,050)*2

+1,600*1050*2,050

Net weight (kg)576/607720/7501,120/1,150/1,1801,250/1,280/1,3101,980/2,0103,265/3,295/3,325
Operation temperature (℃) -30 ~ 55
Relative humidity0 ~95% non-condensing
Ingress protectionIP20
Noise emission (dB)<70
Operating altitude<5000m(>3,000 Derating)
CoolingAir Cooling
Display and communication
DisplayLCD touch-screen
BMS communicationRS485,TCP/IP, CAN
EMS communication RS485,TCP/IP, CAN
