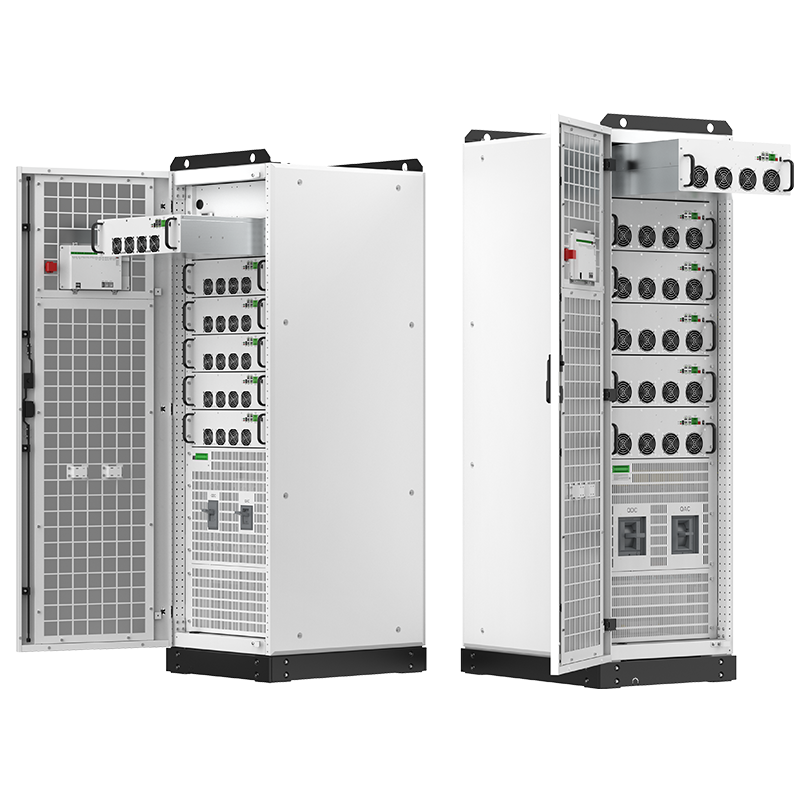

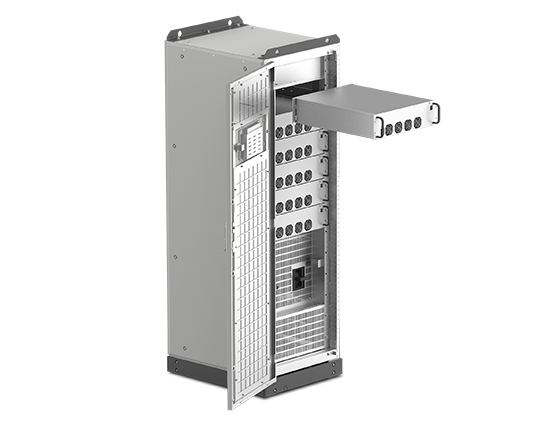

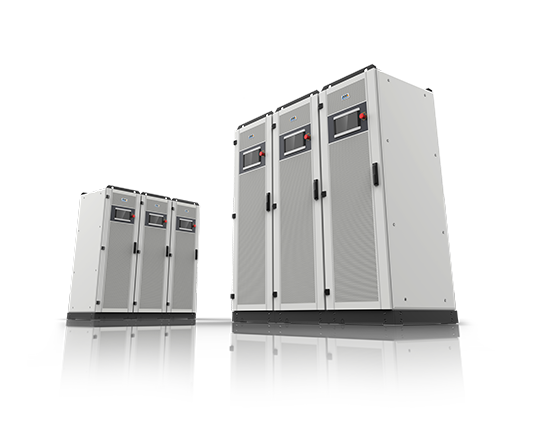

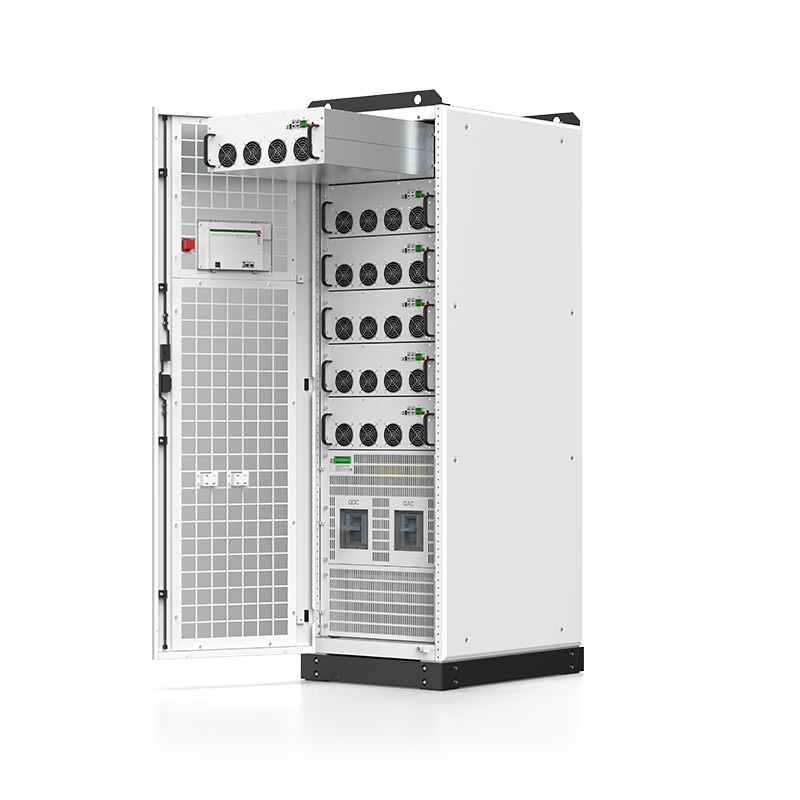

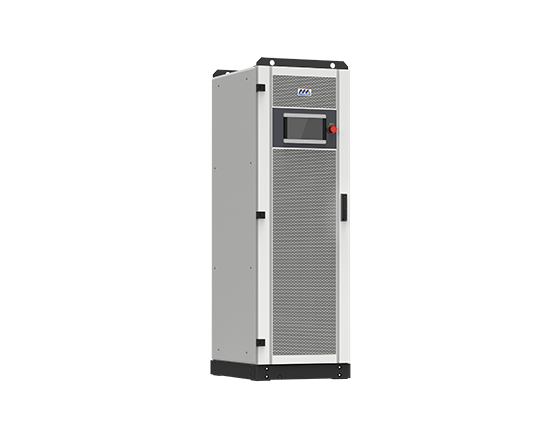

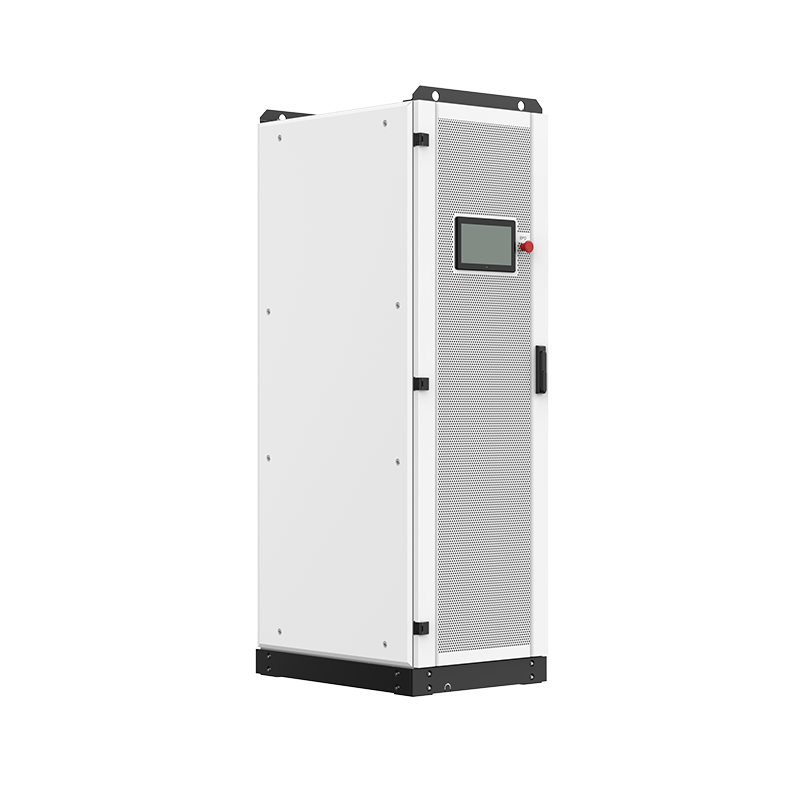

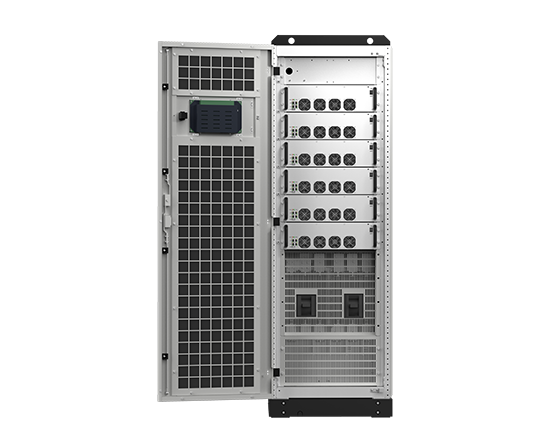

PMAE series modular converter is designed for on-grid application, the product adopts pre-assembled standard cabinet design, which consists of PMA standard power module, electrical distribution, 10-inch smart screen, EPO switch, etc. It supports flexible increase and decrease, the power level of a single cabinet covers 50kW~630kW, and can be extended by up to 4 cabinets, realizing a single system of 1MW. Supporting single and multi-branch input technology, power modules and electrical distribution can be flexibly configured on demand to reduce construction costs and quickly achieve AC / DC bidirectional energy conversion.
Peak Load Shifting
Demand Side Management
Emergency Power Supply
Dynamic Expansion
Model | PMAE0150 | PMAE0200 | PMAE0250 | PMAE0300 | PMAE0350 |
Parameters for DC side | |||||
Number of modules | 3 | 4 | 4 | 5 | 6 |
Operating DC voltage range (V) | 600~950 | ||||
Full load DC voltage range (V) | 650~900 | ||||
Max. DC current (A) | ±257 | ±344 | ±430 | ±515 | ±600 |
Voltage accuracy | ±1% | ||||
Current accuracy | ±2% | ||||
Parameters for AC side | |||||
Rated active power(kW) | 150 | 200 | 250 | 300 | 350 |
Max. apparent power (kVA) | 165 | 220 | 275 | 330 | 385 |
Grid type | 3W+PE | ||||
Rated AC voltage (V) | 400 | ||||
Rated AC current (A) | 216 | 288 | 360 | 433 | 505 |
Max. AC current (A) | 238 | 318 | 396 | 476 | 555 |
THDi | <3% (of rated power) | ||||
Grid voltage range (V) | 400±15% (According to load standards) | ||||
Grid frequency range (Hz) | 50±5 / 60±5 (According to load standards) | ||||
Adjustable power factor range | >0.99; -1~ +1 | ||||
Communication parameters | |||||
Human-computer interaction | 10.1" Touch screen | ||||
Communication interface | Ethernet/RS485/CAN | ||||
Communication with BMS | RS485/CAN(optional) | ||||
Communication with EMS | RS485/Ethernet(optional) | ||||
Protection parameters | |||||
Over voltage category | DC type II / AC type III | ||||
Protection class | Class I | ||||
DC shorted protection | Breaker | ||||
AC shorted protection | Breaker | ||||
Insulation resistor detection | Integrated | ||||
AC relay automatic checking | Integrated | ||||
General parameters | |||||
Max. efficiency | 98.5% | ||||
Charge/discharge switching time (ms) | <20 | ||||
Relative humidity | <95%(Non-condensing) | ||||
Operating temperaturerange (℃) | -30~+60(>45 Derating) | ||||
Storage temperature range (℃) | -40~+70 | ||||
Max. operating altitude (m) | 5,000(>3,000 Derating) | ||||
Protection degree | IP20 | ||||
Cooling | Intelligent forced air-cooling | ||||
DC connector | Quick connector(support hot plug) | ||||
AC connector | Quick connector(support hot plug) | ||||
Dimension W*D*H (mm) | 600*750*1,800 | ||||
Weight (kg) | 290 | 320 | 320 | 350 | 380 |
Model | PMAE0315 | PMAE0420 | PMAE0525 | PMAE0630 |
Parameters for DC side | ||||
Number of modules | 3 | 4 | 5 | 6 |
Operating DC voltage range (V) | 600~950 | |||
Full load DC voltage range (V) | 650~900 | |||
Max. DC current (A) | ±541 | ±722 | ±902 | ±1082 |
Voltage accuracy | ±1% | |||
Current accuracy | ±2% | |||
Parameters for AC side | ||||
Rated active power(kW) | 315 | 420 | 525 | 630 |
Max. apparent power (kVA) | 347 | 462 | 578 | 693 |
Grid type | 3W+PE | |||
Rated AC voltage (V) | 400 | |||
Rated AC current (A) | 455 | 606 | 758 | 909 |
Max. AC current (A) | 500 | 667 | 834 | 1000 |
THDi | <3% (of rated power) | |||
Grid voltage range (V) | 400±15% (According to load standards) | |||
Grid frequency range (Hz) | 50±5 / 60±5 (According to load standards) | |||
Adjustable power factor range | >0.99; -1~ +1 | |||
Communication parameters | ||||
Human-computer interaction | 10.1" Touch screen | |||
Communication interface | Ethernet/RS485/CAN | |||
Communication with BMS | RS485/CAN(optional) | |||
Communication with EMS | RS485/Ethernet(optional) | |||
Protection parameters | ||||
Over voltage category | DC type II / AC type III | |||
Protection class | Class I | |||
DC shorted protection | Isolating switch+fuse | |||
AC shorted protection | Breaker | |||
Insulation resistor detection | Integrated | |||
AC relay automatic checking | Integrated | |||
General parameters | ||||
Max. efficiency | 98.5% | |||
Charge/discharge switching time (ms) | <20 | |||
Relative humidity | <95%(Non-condensing) | |||
Operating temperaturerange (℃) | -30~+60(>45 Derating) | |||
Storage temperature range (℃) | -40~+70 | |||
Max. operating altitude (m) | 5,000(>3,000 Derating) | |||
Protection degree | IP20 | |||
Cooling | Intelligent forced air-cooling | |||
DC connector | OT/DT terminal(permanently connected) | |||
AC connector | OT/DT terminal(permanently connected) | |||
Dimension W*D*H (mm) | 600*850*1,950 | |||
Weight (kg) | 340 | 390 | 440 | 480 |
