>Power Conversion System

Please fill in the email and download the information immediately

MEGA series PCS is specially designed for grid-level applications. It has multi-machine parallel connection, grid black start, SVG function, supports IEC61850 communication protocol,

and can meet various scenarios of power generation, transmission, distribution and consumption.

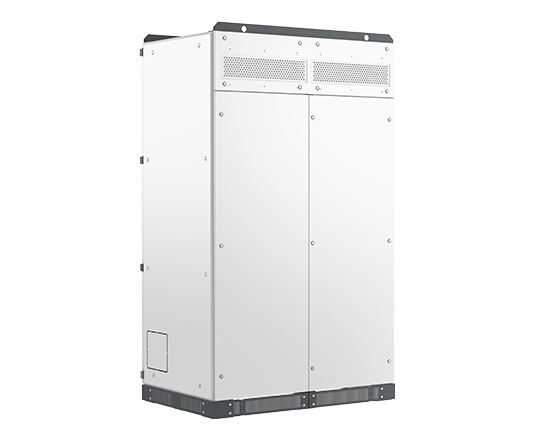

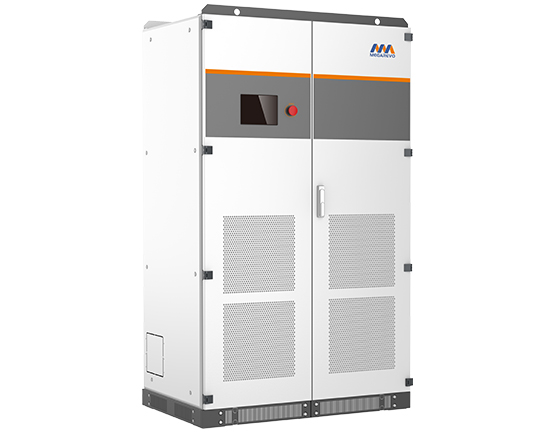

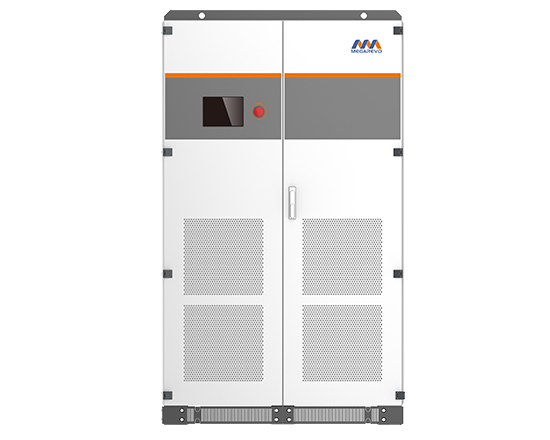

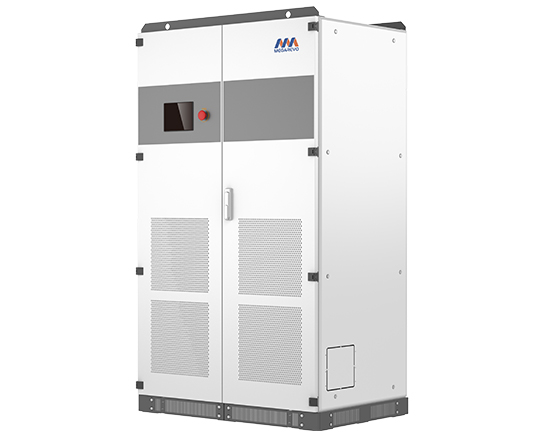

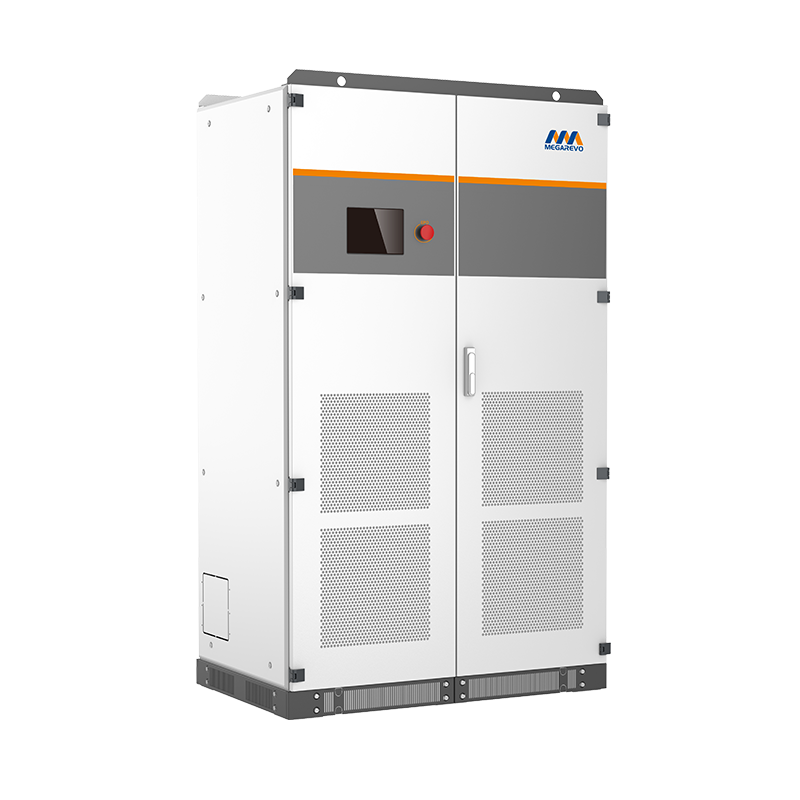

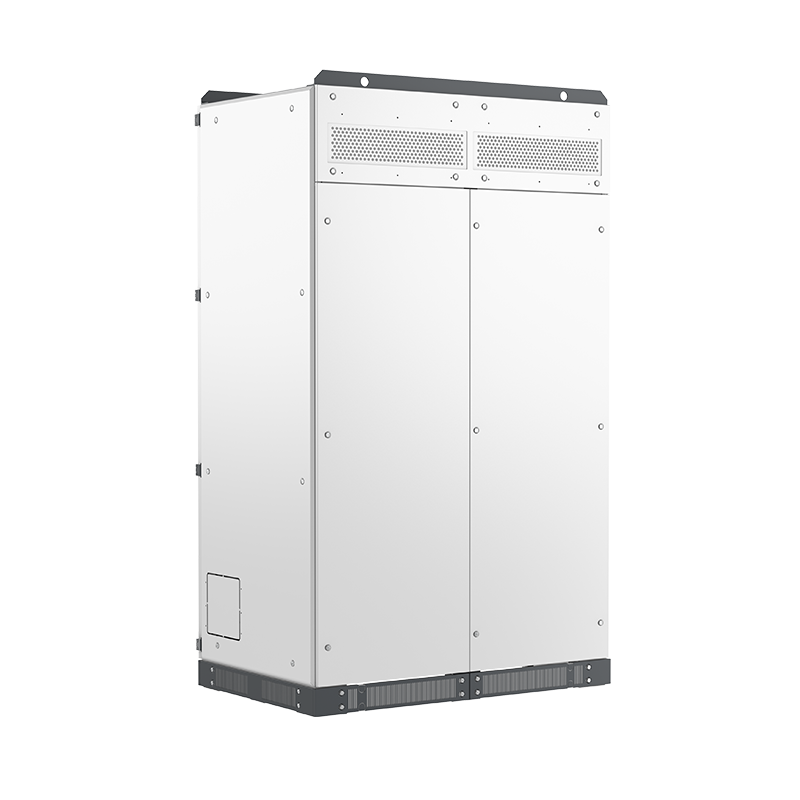

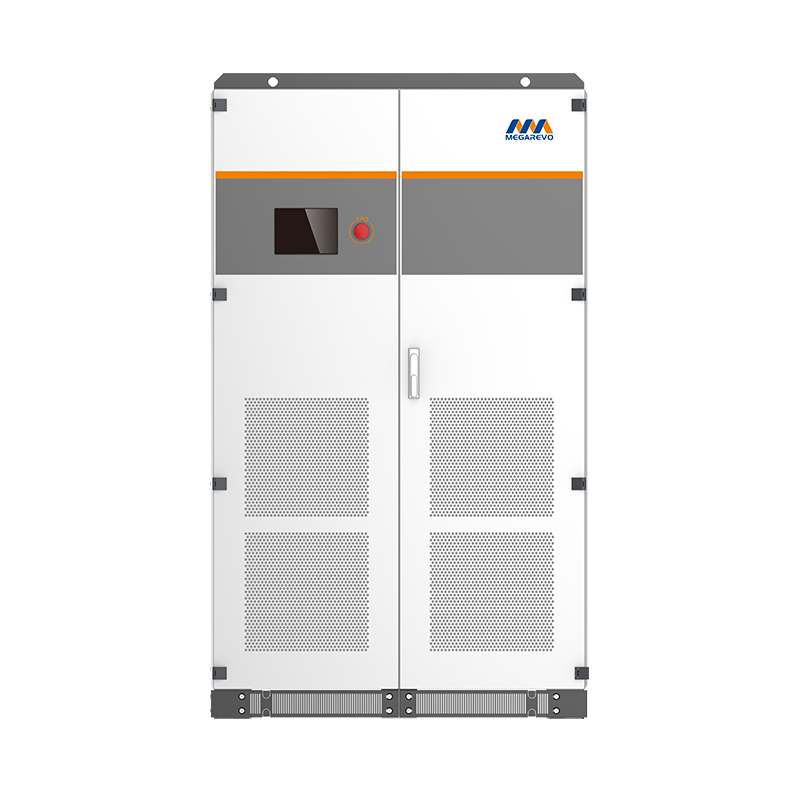

Power conversion system (without isolation transformer)
Power conversion system (without isolation transformer)
Power conversion system (without isolation transformer)
Power conversion system (without isolation transformer)
Power conversion system (without isolation transformer)
Power conversion system (without isolation transformer)
Power conversion system (without isolation transformer)
Power conversion system (without isolation transformer)
Product Highlights
Safe and reliable
Passed IEC/EN62109-1/-2, IEC/EN 62477-1, IEC/EN 61000-6-2, IEC/EN 61000-6-4, CGC certification test;
High-performance DSP, optimized control circuit design, more stable system;
Flexible configuration
Wide battery voltage range, support multiple battery access;
Reactive power and active power adjustable;
Intelligent and efficient
The maximum efficiency reaches 98.7%;
With grid-connected charge and discharge, off-grid independent inverter function;
Choose our benefits

Easy to configure and integrate

Strong extensibility

AC and DC dual power backup

Meet industry-leading safety standards

Support 7*24 remote service

ModelMEGA0500MEGA0630
DC(battery)
Voltage range (V)600~900
Max. current (A)9291,170
AC(on-grid)
Max output power (kW)550693
Rate output power (kW)500630
Rated voltage (V)400
Voltage range (V)320~460
Rated current (A)722909
Max. output current (A)8001,000
Rated frequency (Hz)50/60
Frequency range (Hz)45~55/55~65
THDi<3%
Power factor1lagging-1leading（Settable）
AC connection3W+PE
General data
Max.efficiency98.7%
Ingress protectionIP21
Noise emission (dB)<70
Operating temperature (℃) -30～55
Cooling Forced air
Relative humidity 0 ~95% non-condensing
Operating altitude5,000m(>3,000 Derating )
Dimension W*D*H (mm)1,000*700*2,050
Net weight (kg)950
Transformer/
Self-consumption (W)<0.5%
Display and communication
Display LCD touch-screen
BMS communicationRS485,  CAN
EMS communicationRS485, TCP/IP
Certificates IEC/EN62109-1/-2, IEC/EN 62477-1, IEC/EN 61000-6-2, IEC/EN 61000-6-4, CGC
