Container energy storage system

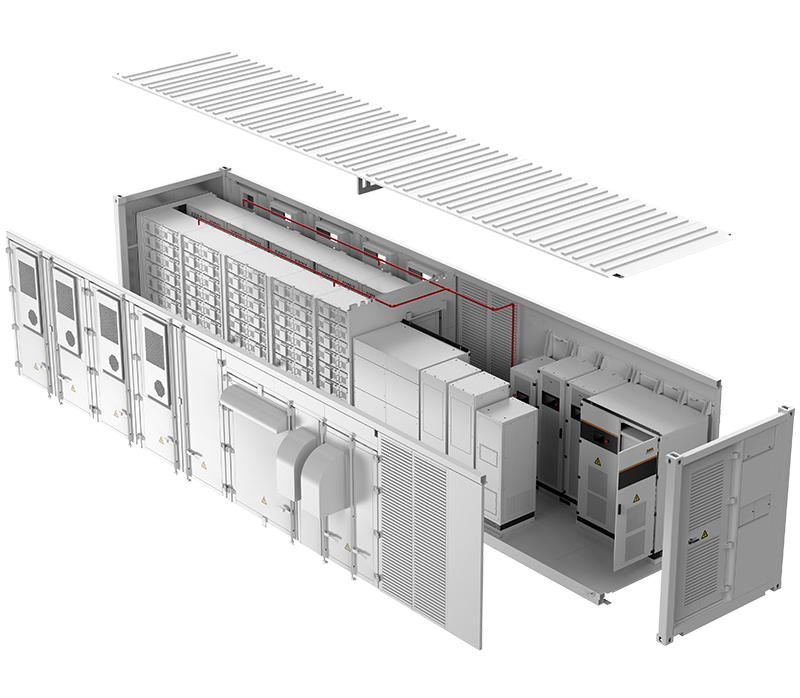

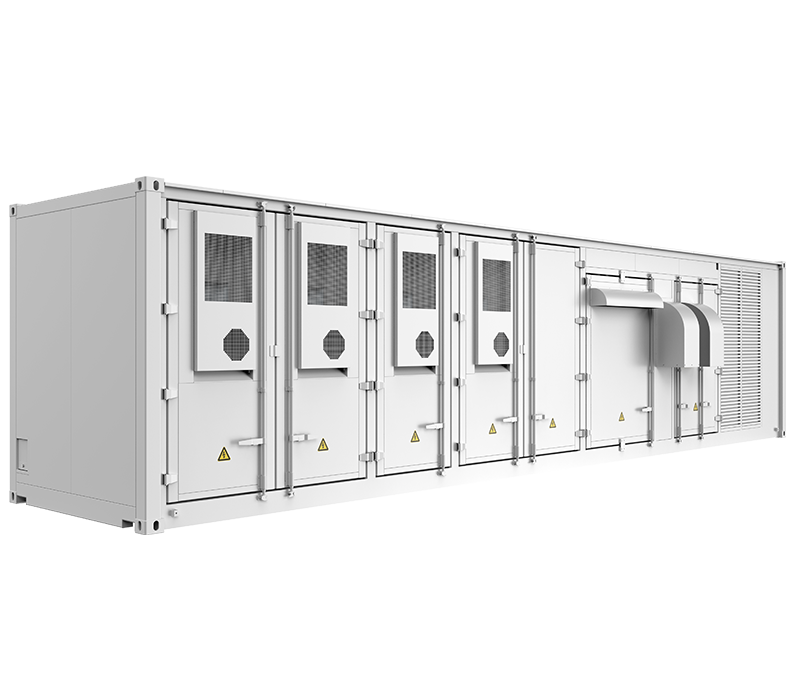

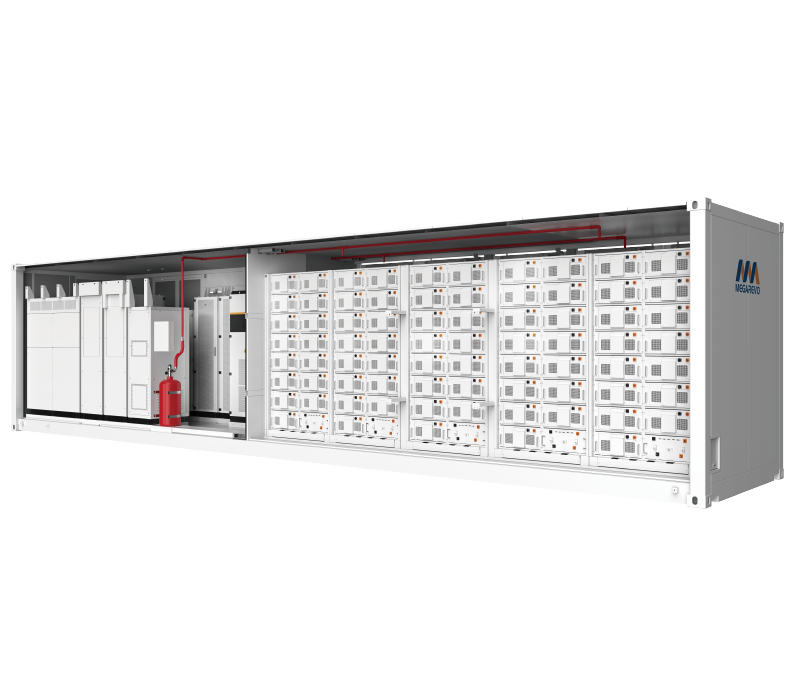

In order to reduce the production losses caused by power outages in summer, Megarevo has launched 20-foot high-energy-density ESS. The DC side consists of eight 138kWh lithium battery energy units, and the AC side uses MEGA series PCS, through the EMS operation strategy, interacts with the grid in a friendly way, and provides power support for customers during power limited period.

Product Highlights

Friendly & Flexible

Standardized design, easy to expand and maintain.

Support simultaneous access to load, battery, grid, DG, and PV.

Safe & Reliable

Support battery management system and comprehensive thermal management.

Support real-time online monitoring of system status.

Abundant configuration

Diversified selection of equipment capacity.

Multiple working modes can be flexibly set.

Choose our benefits

Integrated design for easy transportation and installation

Reduce system operating costs

Can be used for a variety of backup purposes

Turnkey projects

Support 7*24 remote service

Model	ESSC0500B-1075	ESSC1000B-2150
AC data
Rated power (kW)	500	1,000
Rated voltage (V)	400
Rated current (A)	722A	1,445A
Voltage range (V)	320V-460V
Rated frequency	50/60Hz
Frequency Range	45-55/55-65Hz
THDi(on-grid)	<3%
THDu (off-grid)	≤ 1% linear; ≤ 5% non-linear
Power factor	1 (0.8 leading ~ 0.8 laging can be set)
Overload capacity	110% Long term
AC output	3W+N+PE
Isolation transformer	315/400
On -grid off-grid switching	Support
PV data
Max.PV input voltage (V)	1,000
Max. PV power (kW)	600/660/720	1,200/1,320/1,440
MPPT operating voltage range (V)	250~850
MPPT full load voltage range (V)	450~850
Buck-boost mode	Support
Battery data
Cell type	3.2V/280Ah, LFP
Nominal voltage(V)	768V/1P240S
Nominal energy (MWh)	1.0752	2.1504
Working voltage range (V)	672~850V
Max. charge and discharge rate	0.5C@25℃
Cycles	≥5000
System data
Dimensions W D H (mm)	6,058×2,438×2,896	12,192×2,438×2,896
Net weight (kg)	21,000	38,000
Operating temperature (℃)	0 ～ +45
Relative humidity	0 ~95%（non-condensing）
Ingress protection	IP54
Noise emission (dB)	<75dB
Operating altitude	3,000m
Cooling	Intelligent air cooling
Fire extinguishing system	FM200/NVEC1230
Display	Touch LCD display+cloud platform
EMS communication	RS485，TCP/IP
