The split-phase hybrid inverter automatically matches mainstream batteries, is UL certified, integrates a breaker, supports two independent battery strings, and features a 200A pass-through with 100% unbalanced load capability.

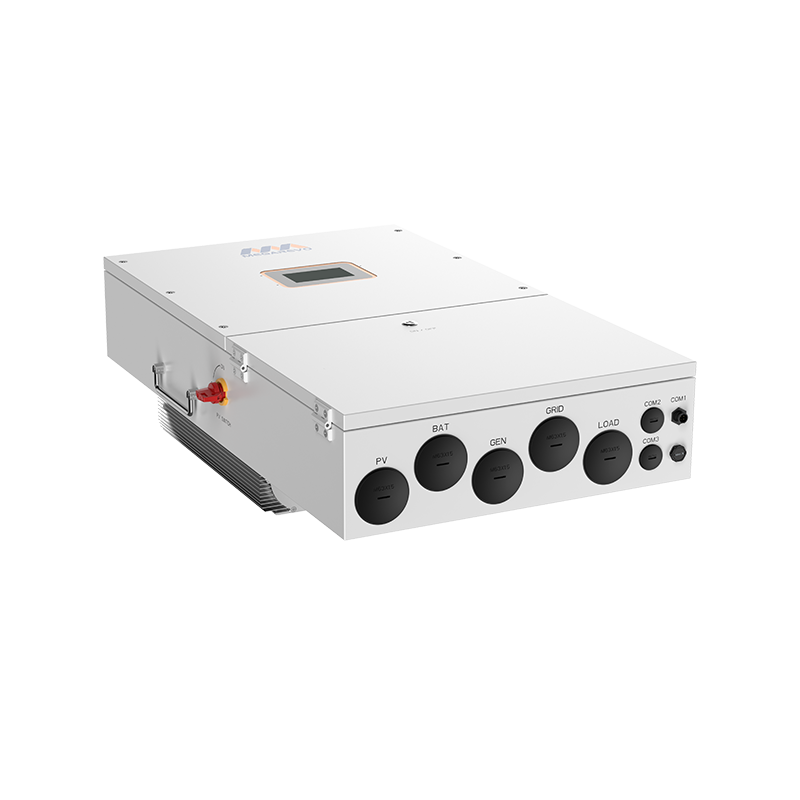

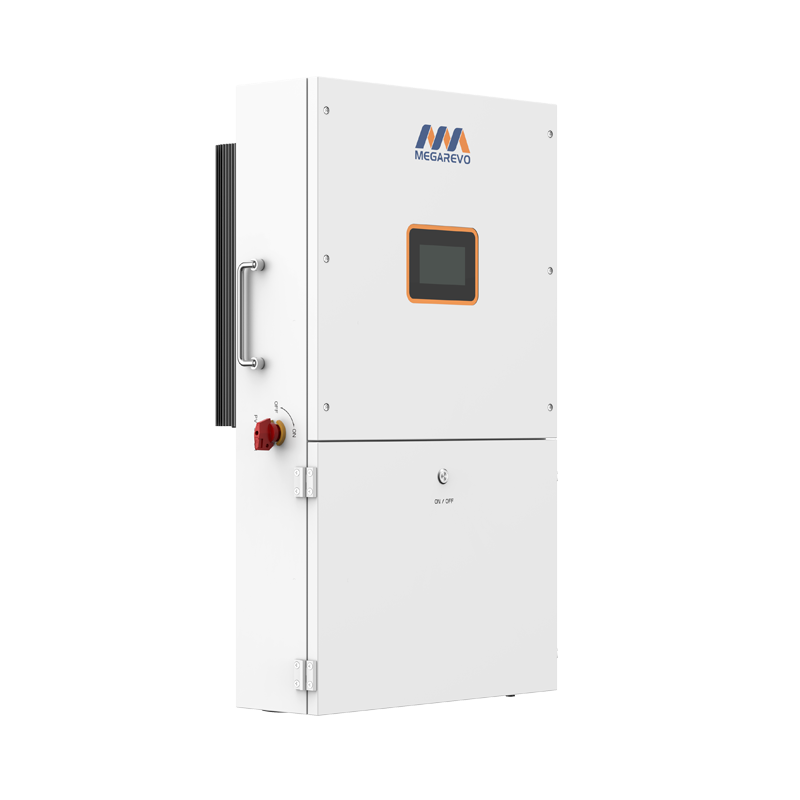

American Split-phase hybrid inverter (battery high voltage)
American Split-phase hybrid inverter (battery high voltage)
American Split-phase hybrid inverter (battery high voltage)
American Split-phase hybrid inverter (battery high voltage)
American Split-phase hybrid inverter (battery high voltage)
American Split-phase hybrid inverter (battery high voltage)
Product Highlights
Safe and reliable
Support PV reverse polarity protection, Anti-islanding protection, Ground fault protection, Battery reverse protection, Leakage current protection, Insulation resistance detection, Backup output short circuit protection, Arc fault protection, AC output over-current protection
Flexible configuration
UL certified, breaker integrated;
200A pass through, Capable of supporting 100% unbalanced loads.
Convenient operation and maintenance
Automatically matches mainstream batteries, supports remote software upgrades, and is compatible with two independent battery clusters and battery sharing
Choose our benefits

Reduce electricity costs by 50% per year

Free energy available at night

Participate in peak load shifting to gain additional economic benefit

keeping critical load operation in power of

Support 7*24 remote service

ModelR16KH2NAR18KH2NAR20KH2NAR22KH2NAR24KH2NA
PV input data
Max. PV input power (kW)2427303336
Max. PV input voltage (V)500
Min. PV input voltage (V)120
Start-up voltage (V)120
MPPT voltage range (V)120~500
MPPT voltage range@full-load (V)150~430
Rated PV input voltage (V)310
No. of MPPT trackers4
No. of strings per MPPT tracker2/2/2/2
Max. input current per MPPT (A)32/32/32/32
Max. short-circuit current per MPPT (A)44/44/44/44

Battery input data
Battery typeLithium-ion / Lead-acid
Max. charge / discharge power (kW)1618202224
Battery voltage range (V)120~400
Battery voltage range@full-load (V)160-400180-400200-400220-400240-400
Max. charging / discharging current (A)50+50 / 50+50
Rated charge / discharge current (A)50+50 / 50+50
Power factor0.8 leading - 0.8 lagging
Battery charging strategySelf-adaption to BMS
BMS communication CAN

AC output data (grid side)
Rated output power (kW)1618202224
Max. apparent output power (kVA)1618202224
Max. apparent input power(kVA)1618202224
Rated grid voltage (V)120/240
Grid voltage range (V)211~264
Grid input voltage (V)240
Rated grid frequency (Hz)60
Grid frequency range(Hz)58.8~61.2
Rated output current (A)66.67583.391.6100
Max. AC output current (A)66.67583.391.6100
Max. apparent input current (A)66.67583.391.6100
Max. grid passthrough current(A)200
Grid typeL1/L2+N+PE

AC output data (load side)
Rated output power (kW)1618202224
Max. apparent output power (kVA)1618202224
Max. apparent input power(kVA)1618202224
Rated output voltage (V)120 / 240
Rated output frequency (Hz)60
Rated output current (A)66.67583.391.6100
Max. AC output current (A)200
Back-up switch time (ms)<20

Protection
Supported protection

PV reverse polarity protection, Anti-islanding protection, Ground fault protection, Battery reverse protection,

Leakage current protection, Insulation resistance detection, Backup output short circuit protection,

Arc fault protection, AC output over-current protection

Surge protectionDC Type II / AC Type II
Over voltage categoryDC Type II / AC Type III

General data
Ingress protectionIP65
Operating temperature range (℃)-25~+60
CoolingFAN cooling
Relative humidity0-85%
Operating altitude (m)/
Dimensions W*D*H (mm)/
Weight (kg)/
Topology (solar / battery)Transformerless / Transformerless
Noise emission (dB)/

Display and communication
DisplayTouch panel
CommunicationRS485,CAN,WIFI,4G
